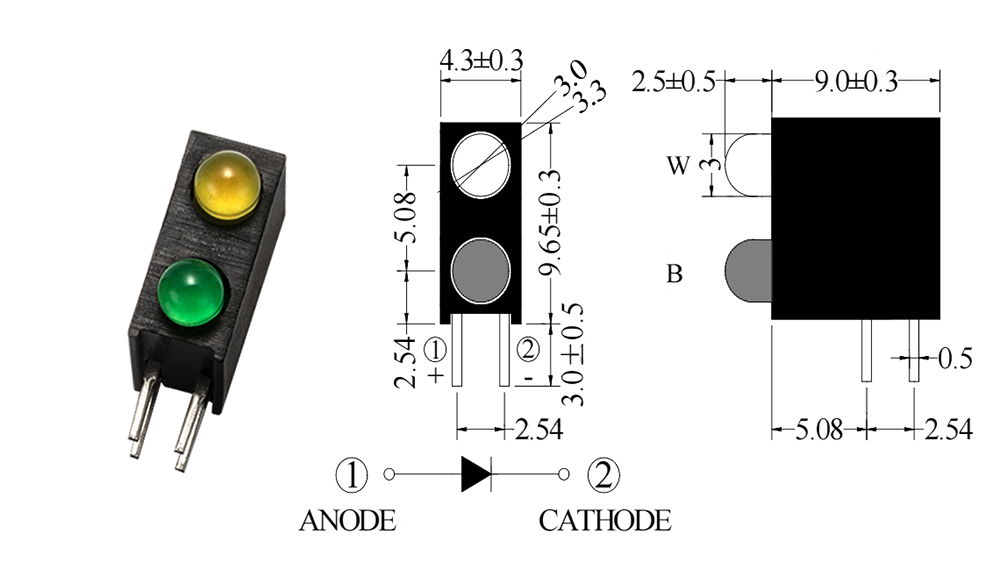

3mm Assembly LED H2
H2
Quantity
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ3N4R1H3-H2 | 红光 (Red) | 红色扩散 (Red Diffused) | 90° | 20mA | 1.8-2.4V | 620-630nm | 70-350mcd |
| 黄绿光 (Yellow-Green) | 绿色扩散 (Green Diffused) | 2.8-3.4V | 565-575nm | 70-210mcd | |||
| WEJ3N4R6H3-H2 | 红光 (Red) | 红色扩散 (Red Diffused) | 40° | 20mA | 1.8-2.4V | 635-650nm | 780-1700mcd |
| 黄绿光 (Yellow-Green) | 绿色扩散 (Green Diffused) | 2.8-3.4V | 565-575nm | 70-210mcd | |||
| WEJ3N4RHD-H2 | 红光 (Red) | 红色扩散 (Red Diffused) | 40° | 5mA | 1.8-2.4V | 620-635nm | 5-120mcd |
| 黄绿光 (Yellow-Green) | 绿色扩散 (Green Diffused) | 1.8-2.4V | 565-575nm | 20-90mcd | |||
| WEJ3N4YRD-SRXH-H2 | 黄光 (Yellow) | 黄色扩散 (Yellow Diffused) | 90° | 20mA | 1.8-2.4V | 585-595nm | 70-350mcd |
| 红光 (Red) | 红色扩散 (Red Diffused) | 1.8-2.4V | 620-630nm | 70-350mcd | |||
| WEJ3N4G5G5-H2-DS | 绿光 (Green) | 绿色扩散 (Green Diffused) | 60° | 20mA | 2.8-3.4V | 515-525nm | 1300-3800mcd |
| 绿光 (Green) | 2.8-3.4V | 515-525nm | 1300-3800mcd | ||||
| WEJ3NCD-WCB4-H2 | 白光 (White) | 无色透明 (Water Clear) | 50° | 20mA | 2.8-3.6V | 9000-15000k | 3800-11000mcd |
| 蓝光 (Blue) | 蓝色扩散 (Blue Diffused) | 30° | 2.8-3.6V | 460-475nm | 600-2200mcd |
