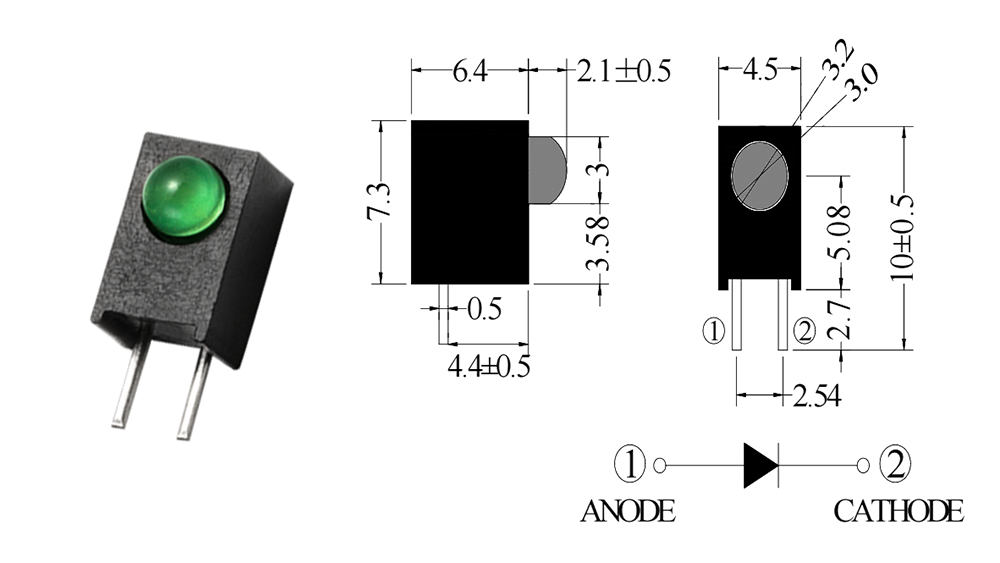

3mm Assembly LED H3
H3
Quantity
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ3B4RD-891-H3 | 红光 (Red) | 红色扩散 (Red Diffused) | 70° | 20mA | 1.8-2.4V | 620-635nm | 210-900mcd |
| WEJ3B4BW-815-H3 | 蓝光 (Blue) | 蓝色扩散 (Blue Diffused) | 180° | 20mA | 2.8-3.4V | 460-475nm | 120-270mcd |
| WEJ3B4HD-813-H3 | 黄绿光 (Yellow-Green) | 绿色扩散 (Green Diffused) | 40° | 20mA | 1.8-2.4V | 565-575nm | 10-120mcd |
| WEJ3B4YD-842-H3 | 黄光 (Yellow) | 黄色扩散 (Yellow Diffused) | 60° | 20mA | 1.8-2.4V | 585-595nm | 120-350mcd |
| WEJ3B4GD-A05-H3-DS | 绿光 (Green) | 绿色扩散 (Green Diffused) | 50° | 20mA | 2.8-3.4V | 515-525nm | 2200-5000mcd |
| WEJ3B4RD-853-H3-DS | 红光 (Red) | 红色扩散 (Red Diffused) | 60° | 20mA | 1.8-2.4V | 625-640nm | 120-460mcd |
