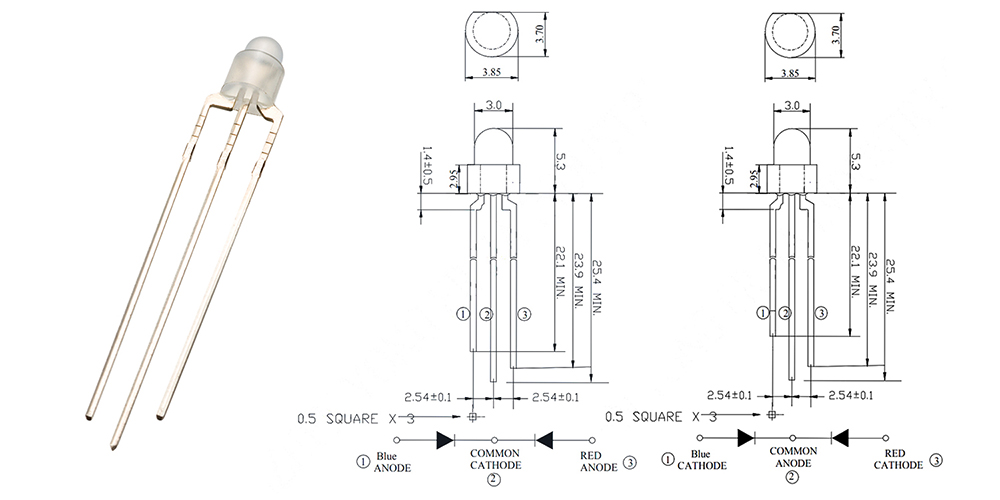

3mm bi-color led
3mm bi-color
* Three-lead common anode or cathode.
* 3mm Round lens, diffused (softer, wider light spread), transparent (focused output), and water-clear (maximum direct intensity).
* Dual-color combinations such as red/green, red/blue, blue/green, and other options can be customized.
* Low-current operation.
* RoHS Compliant.
* 3mm Round lens, diffused (softer, wider light spread), transparent (focused output), and water-clear (maximum direct intensity).
* Dual-color combinations such as red/green, red/blue, blue/green, and other options can be customized.
* Low-current operation.
* RoHS Compliant.
Quantity
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ3290C-R3B7-BA 共阳 (COMMON ANODE) | 红光 (Red) | 无色透明 (Water Clear) | 15° | 20mA | 1.8-2.4V | 620-630nm | 600-2200mcd |
| 蓝光 (Blue) | 2.8-3.4V | 465-475nm | 1300-5000mcd | ||||
| WEJ3290C-R1H1-BA 共阳 (COMMON ANODE) | 红光 (Red) | 无色透明 (Water Clear) | 30° | 20mA | 1.8-2.4V | 630-645nm | 30-160mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.4V | 565-575nm | 30-160mcd | ||||
| WEJ3290C-RTG5-BA 共阳 (COMMON ANODE) | 红光 (Red) | 无色透明 (Water Clear) | 30° | 20mA | 1.8-2.4V | 620-630nm | 1000-3800mcd |
| 绿光 (Green) | 2.8-3.4V | 515-530nm | 2900-11000mcd | ||||
| WEJ3290C-RSBA-BC 共阴 (COMMON CATHODE) | 红光 (Red) | 无色透明 (Water Clear) | 30° | 20mA | 1.8-2.4V | 620-630nm | 780-3800mcd |
| 蓝光 (Blue) | 2.8-3.4V | 460-475nm | 1300-5000mcd | ||||
| WEJ3290C-R3H8-BC 共阴 (COMMON CATHODE) | 红光 (Red) | 无色透明 (Water Clear) | 45° | 20mA | 1.8-2.4V | 620-630nm | 460-1700mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.4V | 565-575nm | 160-780mcd | ||||
| WEJ3290C-Y3H1-BC 共阴 (COMMON CATHODE) | 黄光 (Yellow) | 无色透明 (Water Clear) | 30° | 20mA | 1.8-2.4V | 585-595nm | 160-780mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.4V | 565-575nm | 10-120mcd | ||||
| WEJ3290W-RSGQ-BA 共阳 (COMMON ANODE) | 红光 (Red) | 白色雾状 (White Diffused) | 180° | 20mA | 1.8-2.4V | 618-630nm | 210-1000mcd |
| 绿光 (Green) | 2.8-3.4V | 515-530nm | 1000-3800mcd | ||||
| WEJ3290W-R1H0-BA 共阳 (COMMON ANODE) | 红光 (Red) | 白色扩散 (White Diffused) | 120° | 20mA | 1.8-2.4V | 630-645nm | 20-120mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.4V | 565-575nm | 20-120mcd | ||||
| WEJ3290W-RSBA-BA 共阳 (COMMON ANODE) | 红光 (Red) | 白色雾状 (White Diffused) | 120° | 20mA | 1.8-2.4V | 620-630nm | 600-1700mcd |
| 蓝光 (Blue) | 2.8-3.4V | 460-475nm | 350-1300mcd | ||||
| WEJ3290W-G5B6-BA 共阳 (COMMON ANODE) | 蓝光 (Blue) | 白色扩散 (White Diffused) | 50° | 20mA | 2.8-3.4V | 460-475nm | 600-1700mcd |
| 绿光 (Green) | 2.8-3.4V | 515-535nm | 2200-6500mcd | ||||
| WEJ3290W-R1H0-BC 共阴 (COMMON CATHODE) | 红光 (Red) | 白色扩散 (White Diffused) | 100° | 20mA | 1.8-2.4V | 620-630nm | 10-70mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.4V | 565-575nm | 30-90mcd | ||||
| WEJ3290W-H4R8-BC 共阴 (COMMON CATHODE) | 红光 (Red) | 白色雾状 (White Diffused) | 60° | 20mA | 1.8-2.4V | 630-640mcd | 120-600mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.4V | 565-575mcd | 70-350mcd | ||||
| WEJ3290W-Y3B7-BC 共阴 (COMMON CATHODE) | 黄光 (Yellow) | 白色扩散 (White Diffused) | 80° | 20mA | 1.8-2.4V | 585-595nm | 45-210mcd |
| 蓝光 (Blue) | 2.8-3.4V | 460-470nm | 350-1000mcd | ||||
WEJ3290W-R8B8-BC 共阴 (COMMON CATHODE) | 红光 (Red) | 白色雾状 (White Diffused) | 60° | 20mA | 1.8-2.4V | 620-630nm | 160-780mcd |
| 蓝光 (Blue) | 2.8-3.4V | 460-475nm | 600-2200mcd |
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ3Z90C-R1B5-BC 共阴 (COMMON CATHODE) | 红光 (Red) | 无色透明 (Water Clear) | 30° | 20mA | 1.8-2.4V | 620-625nm | 270-780mcd |
| 蓝光 (Blue) | 2.8-3.4V | 465-470nm | 600-5000mcd | ||||
| WEJ3Z90C-R3B7-BA 共阳 (COMMON ANODE) | 红光 (Red) | 无色透明 (Water Clear) | 25° | 20mA | 1.8-2.4V | 620-630nm | 1000-2200mcd |
| 蓝光 (Blue) | 2.8-3.4V | 465-475nm | 1000-2200mcd |
