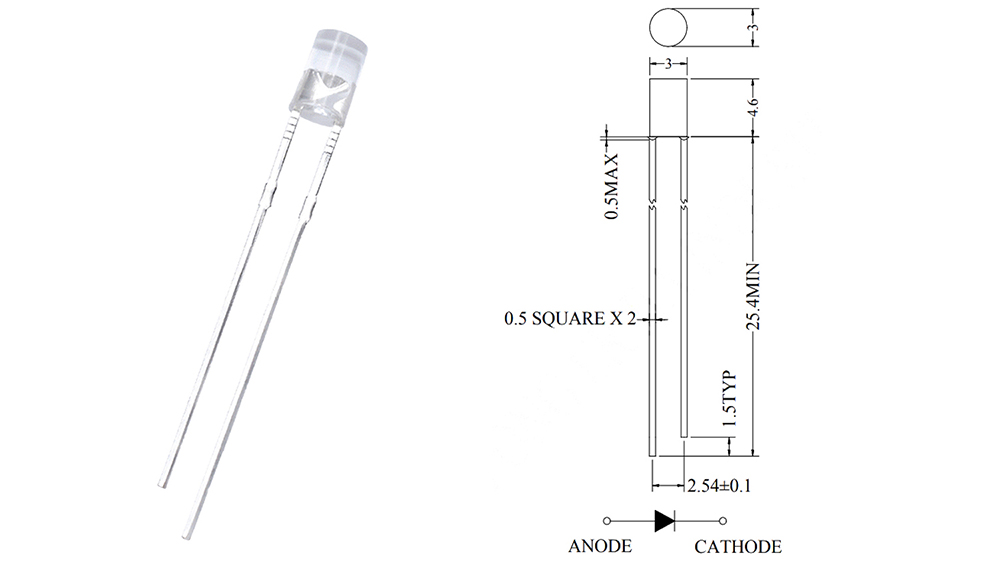

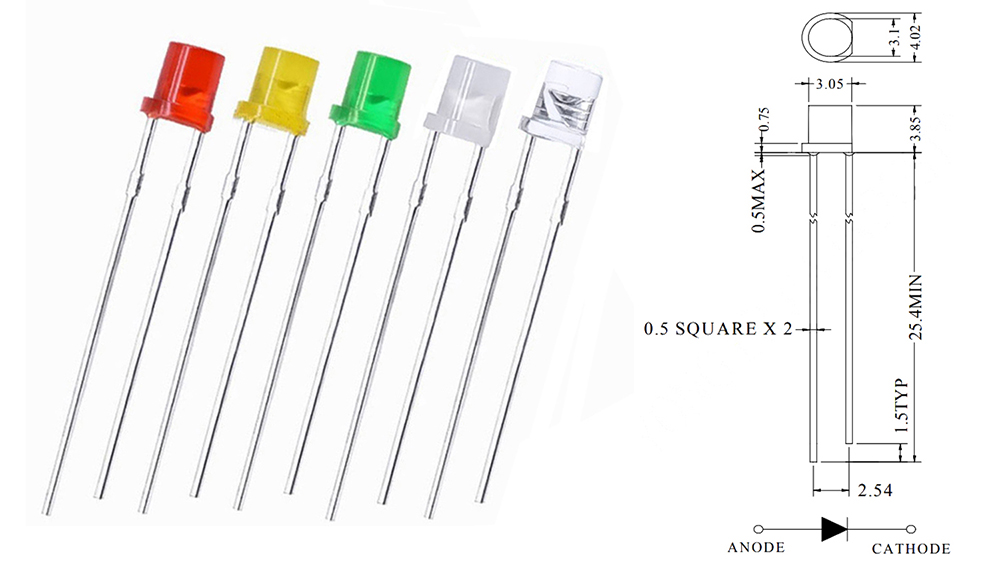

3mm flat head led
3mm flat head
Quantity
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ3P4BD-A16-2 | 蓝光 (Blue) | 蓝色扩散 (BlueDiffused) | 90° | 20mA | 2.8-3.4V | 460-475nm | 210-350mcd |
| WEJ3P4GD-CU4 | 绿光 (Green) | 绿色扩散 (Green Diffused) | 90° | 20mA | 2.8-3.4V | 515-525nm | 780-2200mcd |
| WEJ3P4YD-852 | 黄光 (Yellow) | 黄色扩散 (Yellow Diffused) | 110° | 20mA | 1.8-2.4V | 582-598nm | 45-210mcd |
| WEJ3P4RD-851 | 红光 (Red) | 红色扩散 (Red Diffused) | 110° | 20mA | 1.8-2.4V | 620-635nm | 45-210mcd |
| WEJ3P4RC-8C1 | 红光 (Red) | 无色透明 (Water Clear) | 70° | 20mA | 1.8-2.4V | 620-635nm | 350-780mcd |
| WEJ3PBWC-F34-Y2 | 白光 (White) | 无色透明 (Water Clear) | 95° | 20mA | 2.8-3.4V | 4000-5000K | 1700-5000mcd |
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ3P4YD-842 | 黄光 (Yellow) | 有色扩散 (Color Diffused) | 120° | 20mA | 2.1-2.4V | 585-596nm | 20-50 mcd |
| WEJ3P4RD-9T1-S | 红光 (Red) | 有色扩散 (Color Diffused) | 120° | 20mA | 2.0-2.4V | 620-630nm | 270-450nm |
| WEJ3PGRW-A15-04 | 红光 (Red) | 白色雾状 (White Diffused) | 120° | 5mA | 1.6-2.2V | 630-650nm | 2-7mcd |
| WEJ3PBMC-F64 | 白光 (White) | 无色透明 (Water Clear) | 120° | 20mA | 2.8-3.4V | 2760-3200K | 1000-2000mcd |
| WEJ3PBWC-H22-W | 白光 (White) | 无色透明 (Water Clear) | 120° | 20mA | 2.8-3.6V | 7400-15000K | 2000-6000mcd |
| WEJ3PGWW-H7B4-C0 | 白光 (White) | 白色雾状 (White Diffused) | 120° | 5mA | 2.4-3.0V | X:0.13-0.165 Y:0.11-0.145 | 160-240mcd |
| WEJ3PBWC-H7B4-C0 | 白光 (White) | 无色透明 (Water Clear) | 115° | 5mA | 2.4-3.0V | X:0.13-0.165 Y:0.11-0.145 | 160-260mcd |
