5050 SMD LED
WEJT50AGV-GEGN01, WEJT50AYV-EEGP01, WEJT50ARV-EBCN01, WEJT50AM7-HVTP01, WEJT50AW7-JMNB03
Quantity
5050 SMD LED
High Brightness · Full Color Range · OEM/ODM Available
High Brightness · Full Color Range · OEM/ODM Available

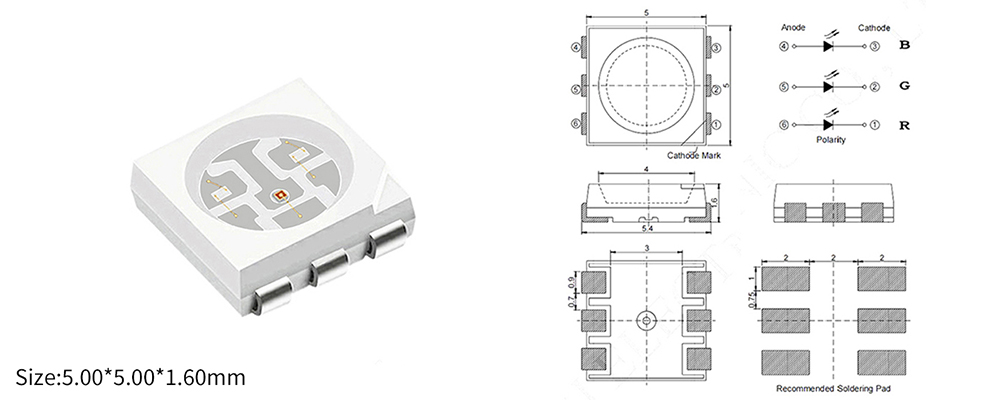

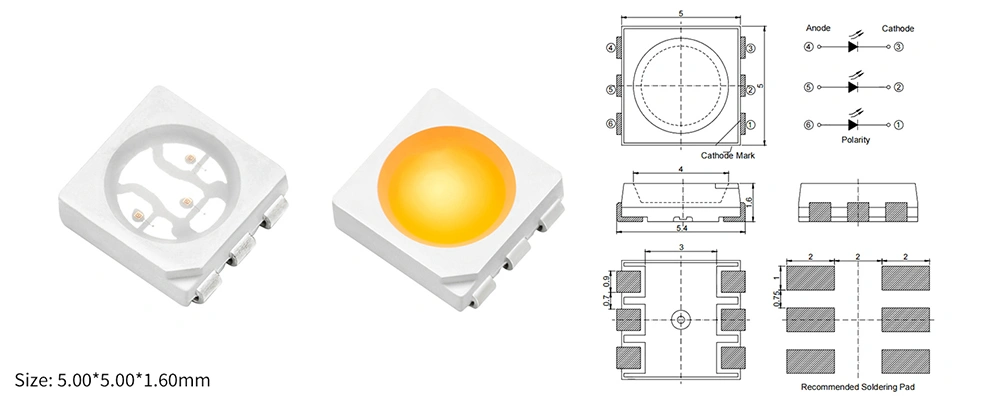

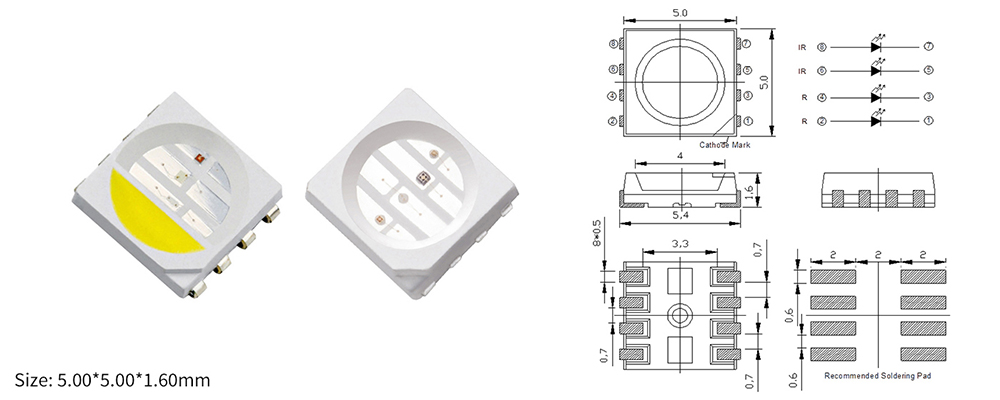

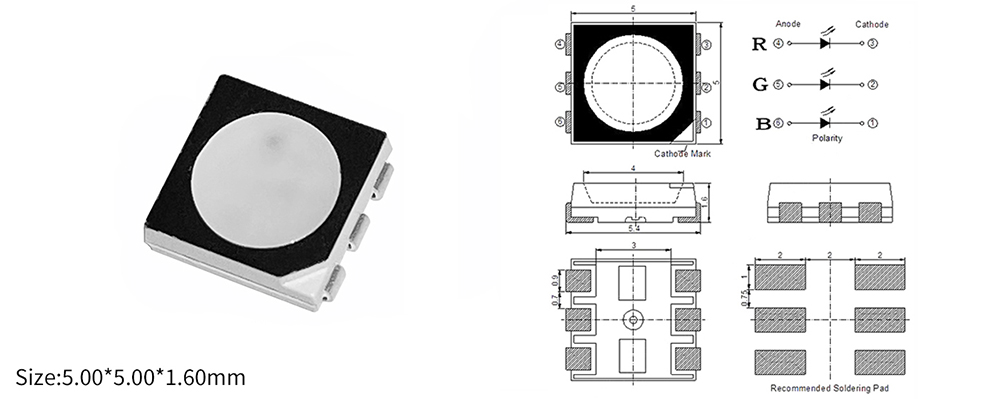

Standard 5050 package (5.0×5.0 mm) with large luminous area, ideal for high‑brightness lighting and decorative applications.
Color Options
Single color: Violet / Blue / Green / Yellow / Red / Warm White / Cool White
Multi‑color: RGB / RGBW / RGBWM / Dual IR + Dual Red
Single color: Violet / Blue / Green / Yellow / Red / Warm White / Cool White
Multi‑color: RGB / RGBW / RGBWM / Dual IR + Dual Red
Key Features
Large package size with excellent heat dissipation, supports higher current
120° viewing angle, uniform light output, high brightness
Available in single‑color and multi‑color configurations (RGB / RGBW / RGBWM, etc.)
IR series suitable for beauty devices, physiotherapy equipment, etc.
Customizable (color, brightness, CCT, packaging)
RoHS compliant
Typical Applications
LED strips & light bars · Decorative lighting · Automotive ambient lighting · Advertising signage · Smart home
LED strips & light bars · Decorative lighting · Automotive ambient lighting · Advertising signage · Smart home
Consumer electronics backlighting · Beauty devices · Infrared therapy equipment
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT50APW-3FFP01 | 紫光 (Violet) | 120° | 60mA | 3.3-3.6V @60mA | 410nm | 8-20mW @60mA |
| WEJT50ABV-DHKP01 | 蓝光 (Blue) | 120° | 60mA | 2.8-3.4V @60mA | 460-470nm | 780-900mcd @60mA |
| WEJT50AGV-GEGN01 | 绿光 (Green) | 120° | 60mA | 2.8-3.4V @60mA | 520-535nm | 1700-2400mcd @60mA |
| WEJT50AYV-EEGP01 | 黄光 (Yellow) | 120° | 60mA | 1.8-2.0V @20mA | 588-594nm | 1000-1300mcd @60mA |
| WEJT50ARV-EBCN01 | 红光 (Red) | 120° | 60mA | 1.8-2.4V @60mA | 620-630nm | 1000-1300mcd @60mA |
| WEJT50AM7-HVTP01 | 暖白光 (Warm White) | 120° | 60mA | 3.2-3.4V @60mA | 2800-3000K | 6800-7800mcd @60mA |
| WEJT50AW7-JMNB03 | 冷白光 (Cool White) | 120° | 60mA | 2.8-3.4V @60mA | 5800-6800K | 18-20lm @60mA |
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| 红光 (Red) | 120° | 30mA | 2.0-2.3V @20mA | 620-625nm | 700-900mcd @20mA | |
| 绿光 (Green) | 2.7-3.0V @20mA | 520-525nm | 1300-1700mcd @20mA | |||
| 蓝光 (Blue) | 2.9-3.2V @20mA | 455-460nm | 210-270mcd @20mA |
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT50HRGBV-CGCBEKP01 | 红光 (Red) | 120° | 30mA | 1.8-2.0V @20mA | 620-625nm | 700-1000mcd @20mA |
| 绿光 (Green) | 2.7-3.0V @20mA | 520-525nm | 1300-2300mcd @20mA | |||
| 蓝光 (Blue) | 2.7-3.0V @20mA | 460-465nm | 460-600mcd @20mA |
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT50ARGBW-BFA6EEN01 | 红光 (Red) | 120° | 20mA | 1.8-2.4V @20mA | 620-630nm | 460-780mcd @20mA |
| 绿光 (Green) | 2.8-3.4V @20mA | 525-535nm | 1300-2300mcd @20mA | |||
| 蓝光 (Blue) | 2.8-3.4V @20mA | 460-470nm | 350-600mcd @20mA | |||
| 白光 (White) | 2.8-3.4V @20mA | 5500-6500K | 6-9lm @20mA | |||
| WEJT50ARGBM-BFA6EEN01 | 红光 (Red) | 120° | 20mA | 1.8-2.4V @20mA | 620-630nm | 460-780mcd @20mA |
| 绿光 (Green) | 2.8-3.4V @20mA | 525-535nm | 1300-2300mcd @20mA | |||
| 蓝光 (Blue) | 2.8-3.4V @20mA | 460-470nm | 350-600mcd @20mA | |||
| 暖白光 (Warm White) | 2.8-3.4V @20mA | 2800-3500K | 6-9lm @20mA | |||
| WEJT50ARGYWV-EHEQ6P01 | 红光 (Red) | 120° | 30mA | 1.8-2.4V @30mA | 620-630nm | 1000-1800mcd @30mA |
| 绿光 (Green) | 2.8-3.4V @30mA | 500-505nm | 2000-3500mcd @30mA | |||
| 黄光 (Yellow) | 1.8-2.4V @30mA | 590-595nm | 1000-1500mcd @30mA | |||
| 白光 (White) | 2.8-3.4V @30mA | 5000-5500K | 10-16lm @30mA | |||
| WEJT50ARGBIR-CGC5BEKQP01 | 红光 (Red) | 120° | 20mA | 1.8-2.0V @20mA | 620-630nm | 700-1000mcd @20mA |
| 绿光 (Green) | 2.7-3.0V @20mA | 520-525nm | 1300-1900mcd @20mA | |||
| 蓝光 (Blue) | 2.7-3.0V @20mA | 460-465nm | 460-600mcd @20mA | |||
| 红外 (IR) | 1.2-1.4V @20mA | 940-950nm | 3-5mW/sr @20mA | |||
| WEJT50GIRIRRR-PLN01 | 红外 (IR) | 120° | 20mA | 1.2-1.4V @20mA | 840-850nm | 3-5mW/sr @20mA |
| 红外 (IR) | 1.2-1.4V @20mA | 840-850nm | 3-5mW/sr @20mA | |||
| 红光 (Red) | 1.8-2.0V @20mA | 640-655nm | 460-600mcd @20mA | |||
| 红光 (Red) | 1.8-2.0V @20mA | 640-655nm | 460-600mcd @20mA |
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |

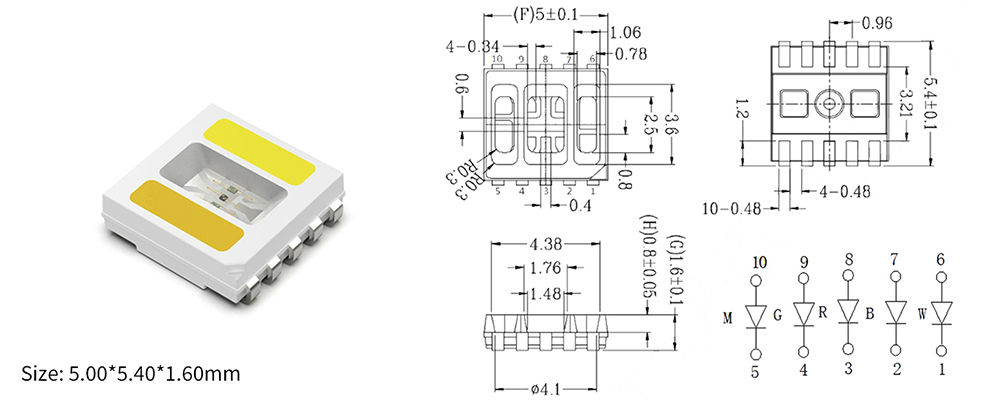

| WEJT50ARGBWM-BFA63N01 | 红光 (Red) | 120° | 20mA | 1.8-2.4V @20mA | 620-630nm | 460-780mcd @20mA |
| 绿光 (Green) | 2.8-3.4V @20mA | 525-535nm | 1300-2300mcd @20mA | |||
| 蓝光 (Blue) | 2.8-3.4V @20mA | 460-470nm | 350-600mcd @20mA | |||
| 白光 (White) | 2.8-3.4V @20mA | 5500-6500K | 6-9lm @20mA | |||
| 暖白光 (Warm White) | 2.8-3.4V @20mA | 2800-3500K | 6-9lm @20mA |
