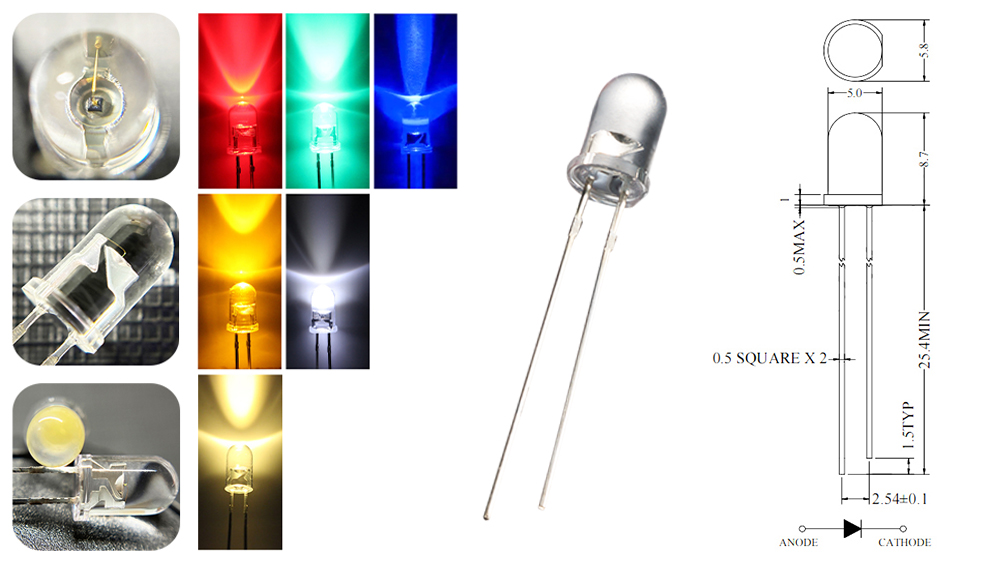

5mm high brightness dip led
5mm round through-hole
•High brightness 5mm through-hole LED manufacturer
•Emitting color : Red, Yellow, Green, Blue, White
•Resin Color : Water Clear
•Viewing Angle : 10/12/15/20/30/45Degree
•Industry Leading Brightness:
Up to 50,000 mcd ultra-high brightness white LEDs and 36,000 mcd green LEDs
•OEM & ODM
•Emitting color : Red, Yellow, Green, Blue, White
•Resin Color : Water Clear
•Viewing Angle : 10/12/15/20/30/45Degree
•Industry Leading Brightness:
Up to 50,000 mcd ultra-high brightness white LEDs and 36,000 mcd green LEDs
•OEM & ODM
Quantity
5mm High Brightness DIP LED
Get Free Samples Click Here
| WEJ Part No. | Emitted Color | View Angle | Dominant Wavelength | Luminous Intensity | PDF Download |
| WEJ503BC-8K4 | Blue | 20° | 460-475nm | 6500-10000mcd | ⬇ |
| WEJ504BC -EZB6-45 | Blue | 45° | 465-475nm | 3000-4000mcd | ⬇ |
| WEJ504GC-8K4 | Green | 15° | 515-530nm | 16000-28000mcd | ⬇ |
| WEJ503CC-CZG1-20 | Green | 20° | 500-505nm | 14000-36000mcd | ⬇ |
| WEJ504GC -D1G5-45 | Green | 45° | 515-530nm | 8500-10000mcd | ⬇ |
| WEJ504GC -D1G5-65 | Green | 65° | 515-530nm | 5000-7000mcd | ⬇ |
| WEJ504RC-9T1-F | Red | 15° | 620-630nm | 6000-12000mcd | ⬇ |
| WEJ554RC-E4R6-F-30 | Red | 30° | 660nm | 1700-5000mcd | ⬇ |
| WEJ504RC -CZR1-45 | Red | 45° | 620-630nm | 4000-4500mcd | ⬇ |
| WEJ504YC-AT1-F | Yellow | 15° | 585-595nm | 8500-18000mcd | ⬇ |
| WEJ504YC-AT3-F-45 | Yellow | 45° | 585-595nm | 3000-4200mcd | ⬇ |
| WEJ50BWC-H7B4-Z2-10 | White | 10° | 4600-6000K | 23000-50000mcd | ⬇ |
| WEJ51BWC-C22-W | White | 15° | 6000-9900K | 18000-30000mcd | ⬇ |
| WEJ504WC-H7B4-Y1-45 | White | 45° | 4000-5000K | 6500-10000mcd | ⬇ |
| WEJ50BWC -H7B4-B3-45 | White | 45° | 7200-9900K | 6500-10000mcd | ⬇ |
| WEJ50CWC-H7B4-B6-ZD | White+ZD | 12° | 9900-20000K | 20000-40000mcd | ⬇ |
Get Quotation Click Here
