5mm straw hat led
5mm straw hat led

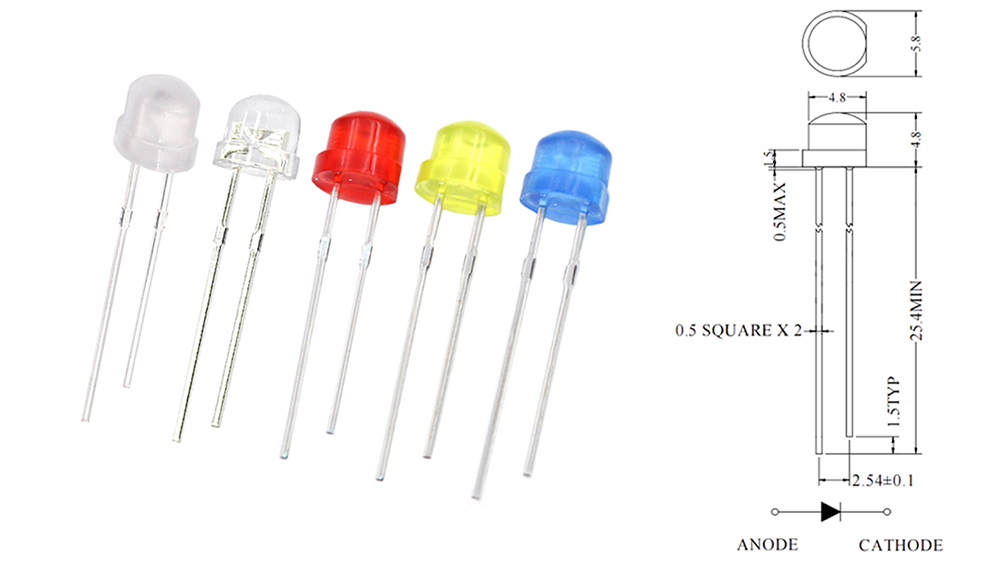

5mm Straw Hat LED Diode
Quantity
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ594RC-851 | 红光 (Red) | 无色透明 (Water Clear) | 45° | 20mA | 1.8-2.4V | 620-630nm | 90-270mcd |
| WEJ594GC-A0G5 | 绿光 (Green) | 无色透明 (Water Clear) | 105° | 20mA | 2.8-3.4V | 515-525nm | 1000-2200mcd |
| WEJ594YC-8CY3 | 黄光 (Yellow) | 无色透明 (Water Clear) | 75° | 20mA | 1.8-2.4V | 585-595nm | 210-480mcd |
| WEJ594RW-9U1-F-ZD | 红光+齐纳 (Red)/ZD | 白色雾状 (White Diffused) | 110° | 20mA | 1.8-2.4V | 620-630nm | 210-780mcd |
| WEJ594BW-A16-ZD | 蓝光+齐纳 (Blue)/ZD | 白色雾状 (White Diffused) | 120° | 20mA | 2.8-3.4V | 460-475nm | 210-780mcd |
| WEJ594GW-A05-ZD | 绿光+齐纳 (Green)/ZD | 白色雾状 (White Diffused) | 120° | 20mA | 2.8-3.4V | 515-525nm | 1700-5000mcd |
| WEJ594YW-AT3-F-ZD | 黄光+齐纳 (Yellow)/ZD | 白色雾状 (White Diffused) | 135° | 20mA | 1.8-2.4V | 585-595nm | 350-1000mcd |
| WEJ594RD-9T1-F | 红光 (Red) | 红色雾状 (Red Diffused) | 130° | 20mA | 1.8-2.4V | 620-630nm | 350-1000mcd |
| WEJ594BD-A16 | 蓝光 (Blue) | 蓝色雾状 (Blue Diffused) | 115° | 20mA | 2.8-3.4V | 460-475nm | 210-780mcd |
| WEJ594GD-A05 | 绿光 (Green) | 白色雾状 (White Diffused) | 120° | 20mA | 2.8-3.4V | 515-530nm | 780-2900mcd |
| WEJ594YD-AT3-F | 黄光 (Yellow) | 黄色雾状 (Yellow Diffused) | 140° | 20mA | 1.8-2.4V | 585-595nm | 210-780mcd |
