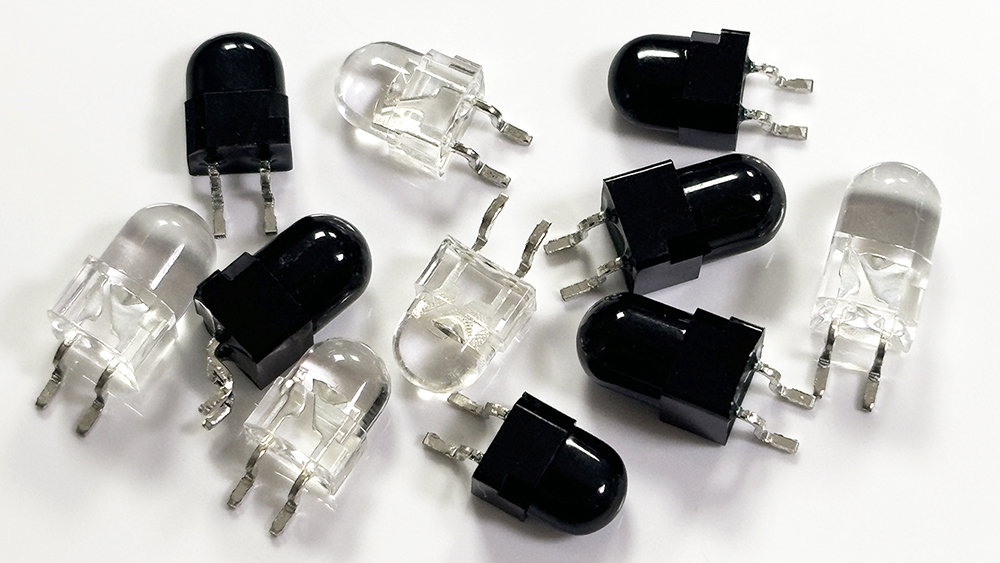

850nm 940nm IR Emitter and Receiver
850nm/940nm
Feature：
1.Low power consumption, Long life-solid state reliability
2.With wide beam angle for emission and receiving
3.The fast response speed(ns level)
4.The long distance for emission and receiving
5.With strong anti-interference ability
1.Low power consumption, Long life-solid state reliability
2.With wide beam angle for emission and receiving
3.The fast response speed(ns level)
4.The long distance for emission and receiving
5.With strong anti-interference ability
Quantity
 |  |

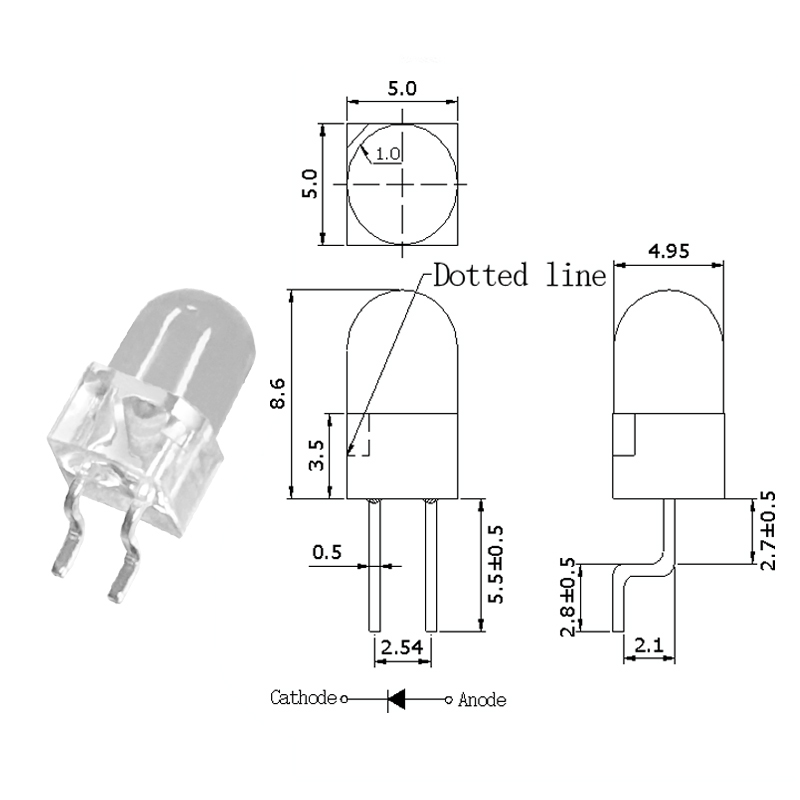

型号(Model Number):WEJ5C3JC-T4A-8-J1-DZ-2.7 产品名称(Product name): 5mm圆头方座850nm红外发射管 正向电流(Forward Current):100mA 正向电压(Forward Voltage): If=50mA Min:1.1V Typ:1.2V If=100mA Min:1.2V Typ:1.5V 辐射强度(Radiant Intensity): If=50mA Min:90mW/Sr Typ:170mW/Sr If=100mA Min:150mW/Sr Typ:270mW/Sr 峰值波长(Peak Wavelength): Typ:850nm | 型号(Model Number):WEJ5CAPD-K64-8-J1-DZ-2.7 产品名称(Product name): 5mm圆头方座850nm红外接收管 波长范围(Range Of Spectral Bandwidth): Min:700nm Max:1000nm 峰值波长(Wavelength Of Peak Sensitivity): Typ:850nm 光电流(Reverse Light Current): Min:25uA Max:45uA 上升/下降时间(Rise Time/Fall Time): Typ:45/45nS Max:50/50nS |
 |  |

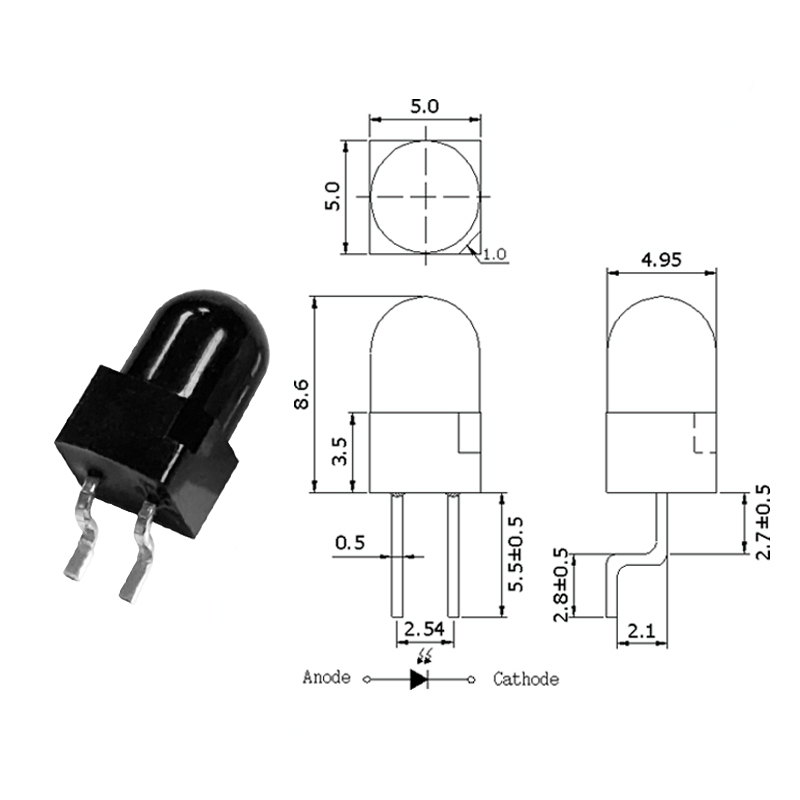

型号(Model Number):WEJ563JC-T4A-DZ 产品名称(Product name): 5mm椭圆方座940nm红外发射管 正向电流(Forward Current):100mA 正向电压(Forward Voltage): If=50mA Min:1.1V Typ:1.2V If=100mA Min:1.2V Typ:1.5V 辐射强度(Radiant Intensity): If=100mA Min:30mW/Sr Typ:35mW/Sr 峰值波长(Peak Wavelength): Typ:940nm | 型号(Model Number):WEJ56APD-K60-DZ 产品名称(Product name): 5mm椭圆方座940nm红外接收管 波长范围(Range Of Spectral Bandwidth): Min:860nm Max:1000nm 峰值波长(Wavelength Of Peak Sensitivity): Typ:940nm 光电流(Reverse Light Current): Min:10uA Max:20uA 上升/下降时间(Rise Time/Fall Time): Typ:45/45nS Max:50/50nS |
 |  |
型号(Model Number):WEJ504JC-E0J1 产品名称(Product name): 5mm圆头850nm红外发射管 正向电流(Forward Current): 100mA 正向电压(Forward Voltage): If=20mA Typ:1.4V Max:1.65V 辐射强度(Radiant Intensity): If=20mA Min:90mW/Sr Typ:110mW/Sr 峰值波长(Peak Wavelength): Typ:850nm | 型号(Model Number):WEJ503PD-K65-J1-1 产品名称(Product name): 5mm圆头850nm红外接收管 波长范围(Range Of Spectral Bandwidth): Min:700nm Max:1000nm 峰值波长(Wavelength Of Peak Sensitivity): Typ:850nm 光电流(Reverse Light Current): Min:20uA Typ:32uA 上升/下降时间(Rise Time/Fall Time): Typ:45/45nS Max:50/50nS |
型号(Model Number):WEJ503JC-T2A 产品名称(Product name): 5mm圆头940nm红外发射管 正向电流(Forward Current):100mA 正向电压(Forward Voltage): If=20mA Typ:1.2V Max:1.4V If=100mA Min:1.4V Typ:1.8V 辐射强度(Radiant Intensity): If=20mA Min:20mW/Sr Typ:28mW/Sr If=100mA Typ:85mW/Sr 峰值波长(Peak Wavelength): Typ:940nm | 型号(Model Number): WEJ503PD-K65-J3-1 产品名称(Product name): 5mm圆头940nm红外接收管 波长范围(Range Of Spectral Bandwidth): Min:860nm Max:1000nm 峰值波长(Wavelength Of Peak Sensitivity): Typ:940nm 光电流(Reverse Light Current): Min:20uA Typ:30uA 上升/下降时间(Rise Time/Fall Time): Typ:5/5nS |
