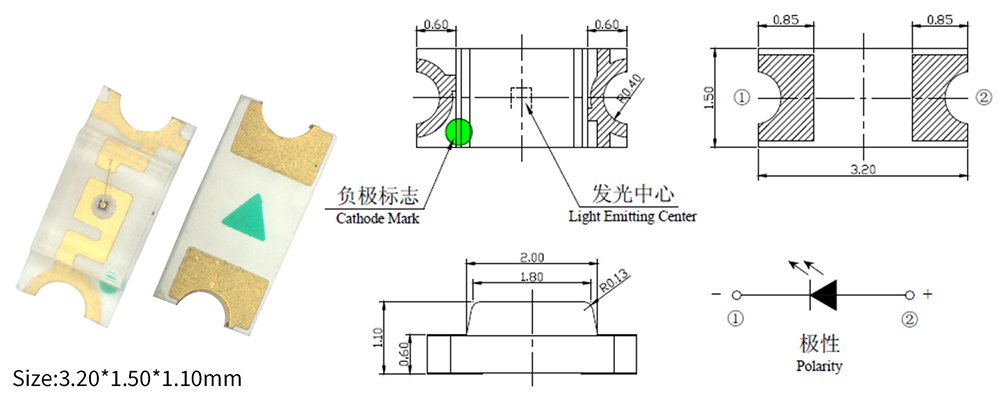

led 1206
1206 led
Quantity
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT91BC-8K4 | 蓝光 (Blue) | 120° | 20mA | 2.8-3.6V @20mA | 464-474nm | 200-280mcd @20mA |
| WEJT91GC-CQ4 | 绿光 (Green) | 120° | 20mA | 2.6-3.6V @20mA | 515-530nm | 500-750mcd @20mA |
| WEJT91HC-752 | 黄绿光 (Yellow-Green) | 130° | 20mA | 1.8-2.3V @15mA | 568-576nm | 20-60mcd @15mA |
| WEJT91YC-881-1 | 黄光 (Yellow) | 120° | 20mA | 1.6-2.6V @20mA | 585-595nm | 80-250mcd @20mA |
| WEJT91RC-9E1 | 红光 (Red) | 120° | 20mA | 1.6-2.6V @20mA | 615-635nm | 80-150mcd @20mA |

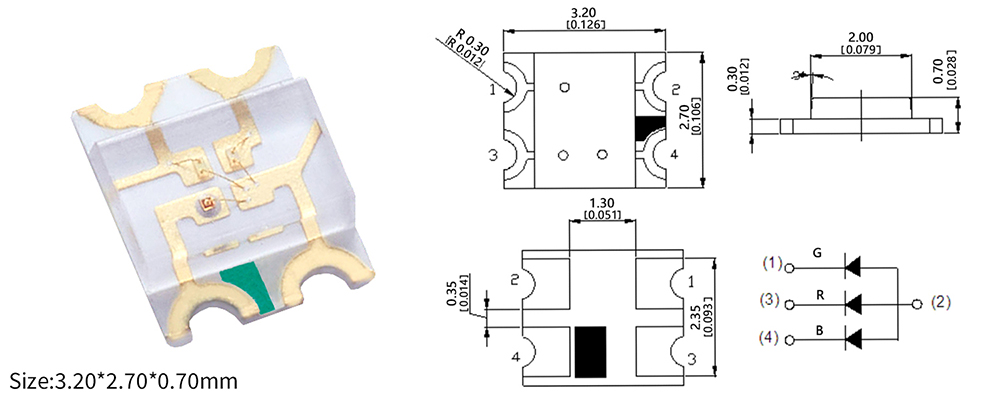

| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT920C-R2G5B3-BA | 红光 (Red) | 120° | 20mA | 1.8-2.4V @20mA | 615-630nm | 100-250mcd @20mA |
| 绿光 (Green) | 2.8-3.6V @20mA | 520-535nm | 150-250mcd @20mA | |||
| 蓝光 (Blue) | 2.8-3.6V @20mA | 462-472nm | 500-1000mcd @20mA |
