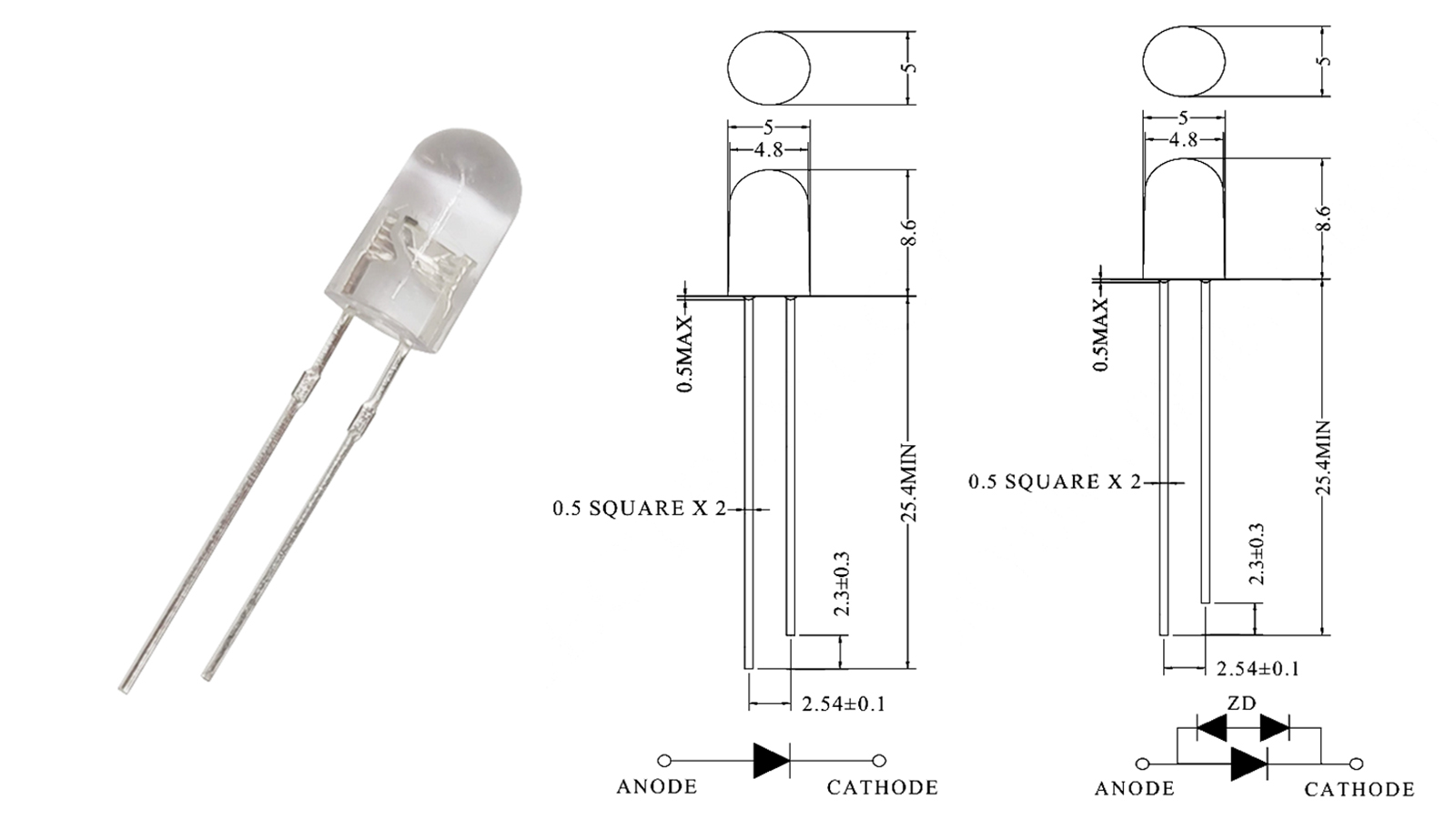

led 5mm
led 5mm
Quantity
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ5N4RT-CZR1 | 红光 (Red) | 红色透明 (Red Clear) | 30° | 20mA | 1.8-2.4V | 620-630nm | 2000-3000mcd |
| WEJ5N4GD-EZG5-D02-80 | 绿光 (Green) | 无色透明 (Water Clear) | 80° | 20mA | 2.8-3.4V | 520-530nm | 2500-4000mcd |
| WEJ5N4RD-CZR1-F-70 | 红光 (Red) | 红色扩散 (Red Diffused) | 70° | 20mA | 1.8-2.4V | 619-629nm | 1300-3000mcd |
| WEJ5NBWC-I8B3-L0-ZD | 白光+齐纳 (White)/（ZD） | 无色透明 (Water Clear) | 55° | 20mA | 2.8-3.4V | 10000-27000K | 6500-14000mcd |
