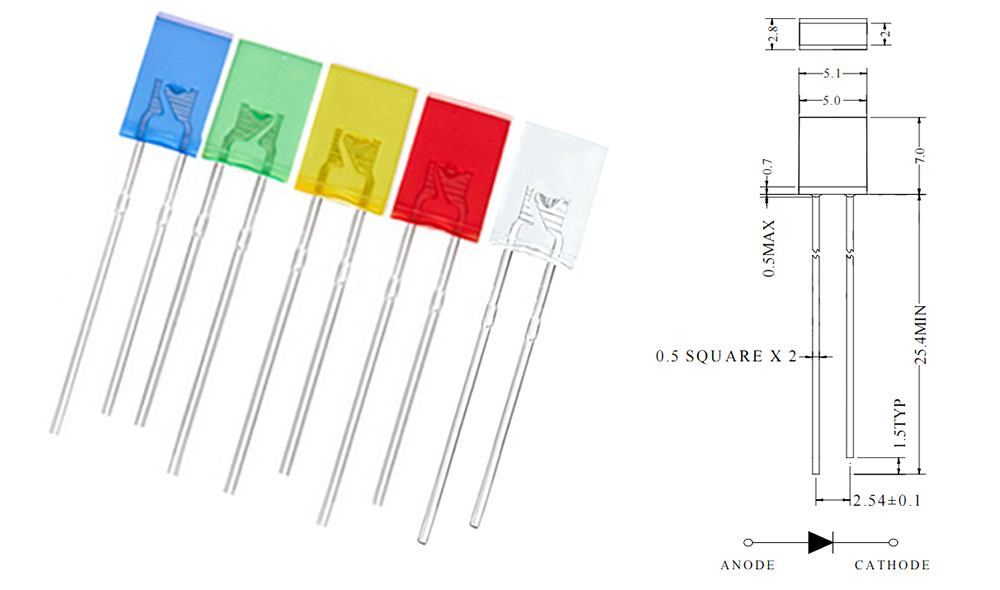

Square 2x5x7mm LED Diode
2x5x7mm LED Diode
Square 2x5x7mm LED Diode Rectangle Wide Angle Red Blue Green Yellow-green White Diffused 2*5*7 LED
Emitting color : Red, Yellow, Green, Blue, Yellow-green , White
Viewing Angle : 80/130/150/160Degree
Emitting color : Red, Yellow, Green, Blue, Yellow-green , White
Viewing Angle : 80/130/150/160Degree
Quantity
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant Wavelength) | 发光强度 (Luminous Intensity) |
| WEJZ44RD-851 | 红光 (Red) | 红色扩散 (Red Diffused) | 140° | 20mA | 1.8-2.4V | 620-635nm | 45-210mcd |
| WEJZ03HD-822 | 黄绿光 (Yellow-Green) | 绿色扩散 (Green Diffused) | 160° | 20mA | 1.8-2.4V | 565-575nm | 5-20mcd |
| WEJZ44YD-874 | 黄光 (Yellow) | 黄色扩散 (Yellow Diffused) | 130° | 20mA | 2.0-2.4V | 585-595nm | 10-40mcd |
