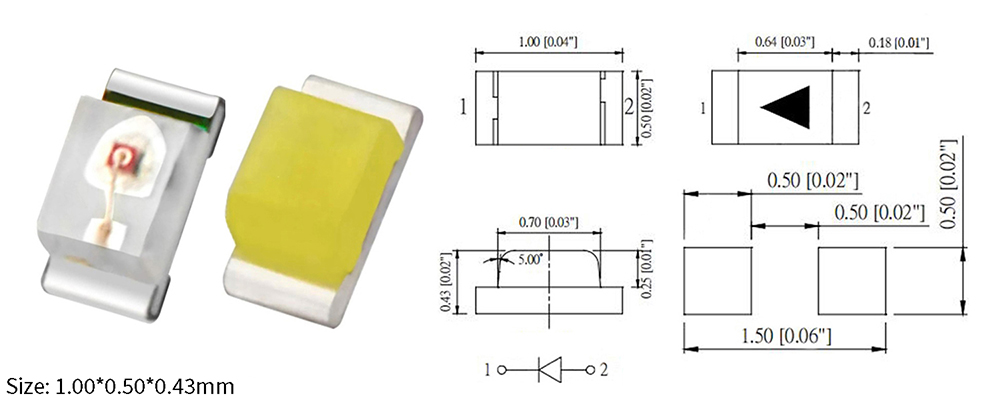

0402 LED灯珠
0402
数量
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT41BC-C66 | 蓝光 (Blue) | 120° | 20mA | 2.8-3.6V @20mA | 460-475nm | 160-230mcd @20mA |
| WEJT41GC-683 | 绿光 (Green) | 120° | 20mA | 2.8-3.6V @20mA | 520-530nm | 320-500mcd @20mA |
| WEJT41HC-632 | 黄绿光 (Yellow-Green) | 120° | 20mA | 1.8-2.4V @20mA | 566-576nm | 25-45mcd @20mA |
| WEJT41YC-524 | 黄光 (Yellow) | 120° | 20mA | 1.7-2.1V @5mA | 588-592nm | 20-40mcd @5mA |
| WEJT41RC-822 | 红光 (Red) | 120° | 20mA | 1.8-2.4V @20mA | 620-630nm | 100-180mcd @20mA |
| WEJT41WC-795 | 白光 (White) | 120° | 20mA | 2.5-3.4V @5mA | X:0.261-0.317 Y:0.246-0.342 | 160-280mcd @5mA |
