3528系列
3528 LED
数量

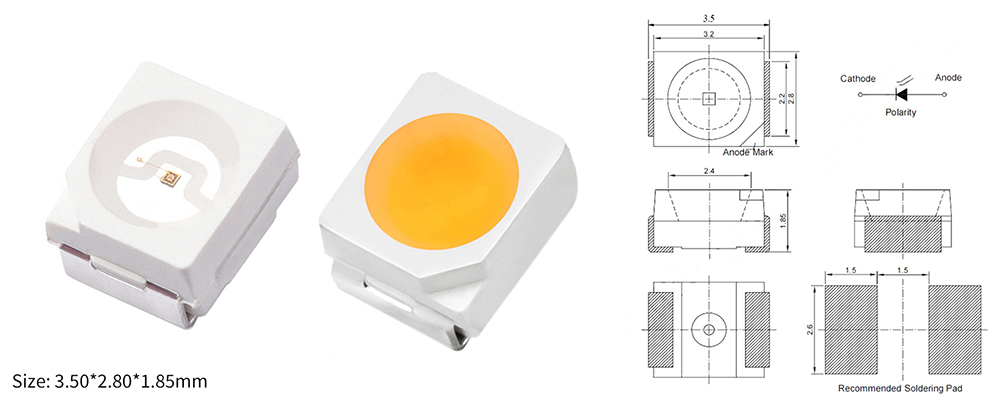

| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT28APW-2GKP01 | 紫光 (Violet) | 120° | 30mA | 3.0-3.4V @20mA | 400-405nm | 15-30mW @20mA |
| WEJT28ABV-8KMP01-413 | 蓝光 (Blue) | 120° | 30mA | 2.8-3.4V @20mA | 465-475nm | 210-300mcd @20mA |
| WEJT28AGV-DEFP01 | 绿光 (Green) | 120° | 30mA | 2.8-3.6V @20mA | 520-535nm | 600-1300mcd @20mA |
| WEJT28AYV-CEGP01 | 黄光 (Yellow) | 120° | 30mA | 1.8-2.4V @20mA | 585-595nm | 600-780mcd @20mA |
| WEJT28AAV-BAP02 | 橙光 (Orange) | 120° | 30mA | 1.8-2.4V @20mA | 600-610nm | 350-600mcd @20mA |
| WEJT28ARV-AACP02 | 红光 (Red) | 120° | 30mA | 1.8-2.4V @20mA | 620-630nm | 600-1300mcd @20mA |
| WEJT28AM7-6WTP01-L13 | 暖白光 (Warm White) | 120° | 30mA | 2.8-3.4V @20mA | 2700-3000K | 6-9lm @20mA |
| WEJT28AW7-6XHP01 | 白光 (White) | 120° | 30mA | 2.8-3.4V @20mA | 5500-6500K | 6-9lm @20mA |

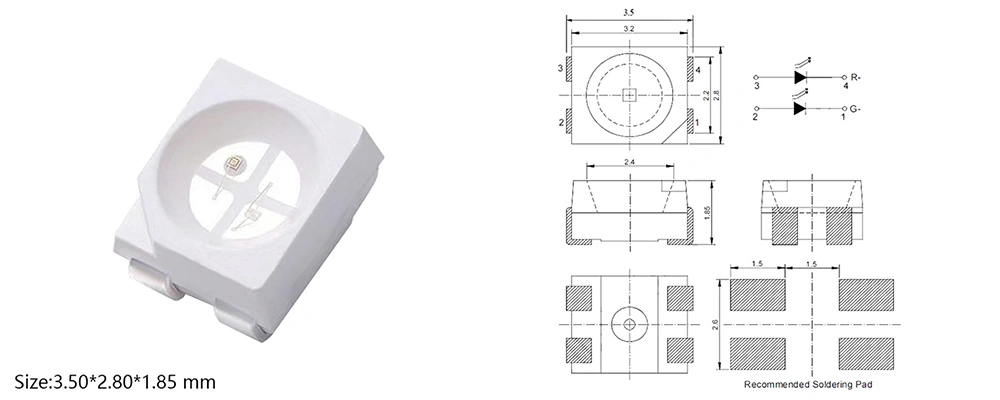

| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT28CRG0-BGBGP01 | 红光 (Red) | 120° | 30mA | 1.8-2.0V @20mA | 620-630nm | 460-600mcd @20mA |
| 绿光 (Green) | 2.8-3.0V @20mA | 520-535nm | 1300-1700mcd @20mA | |||
| WEJT28CJG0-3FPCP01 | 红外 (IR) | 120° | 80mA | 1.37-1.4V @20mA | 840-860nm | 5-13mW/Sr @20mA |
| 绿光 (Green) | 30mA | 3.0-3.4V @20mA | 515-525nm | 780-1300mcd @20mA |

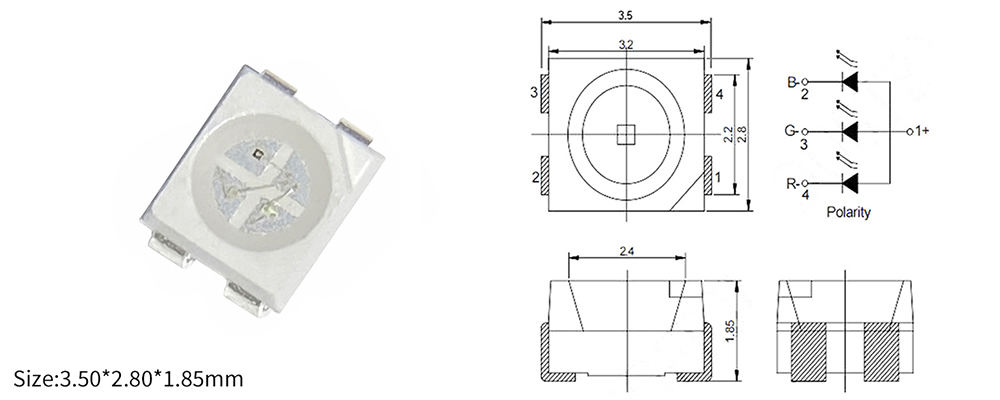

| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT28CRGBP-8D9BEKP08 | 红光 (Red) | 120° | 30mA | 2.0-2.4V @20mA | 620-630nm | 210-230mcd @20mA |
| 绿光 (Green) | 3.2-3.6V @20mA | 520-530nm | 780-1000mcd @20mA | |||
| 蓝光 (Blue) | 3.2-3.6V @20mA | 460-475nm | 270-300mcd @20mA |

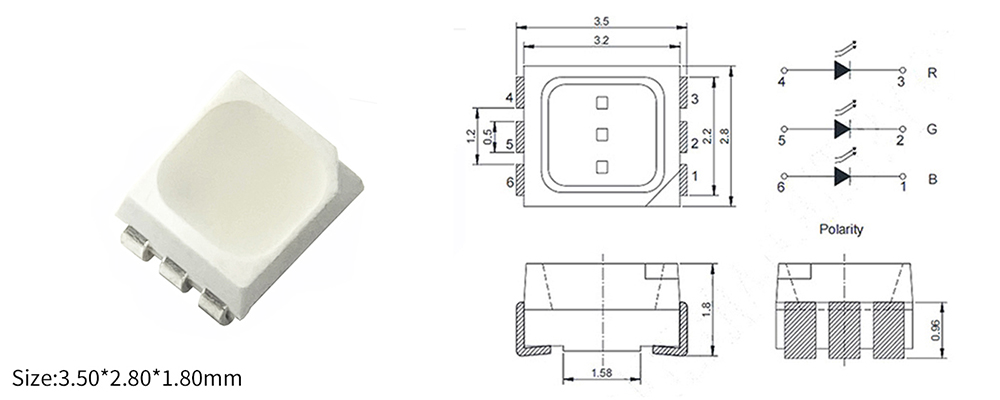

| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT28HRGB0-7E7HFBP01 | 红光 (Red) | 120° | 20mA | 1.8-2.4V @20mA | 620-630nm | 400-600mcd @20mA |
| 绿光 (Green) | 2.6-3.4V @20mA | 520-535nm | 1000-1300mcd @20mA | |||
| 蓝光 (Blue) | 2.6-3.4V @20mA | 465-470nm | 350-460mcd @20mA |

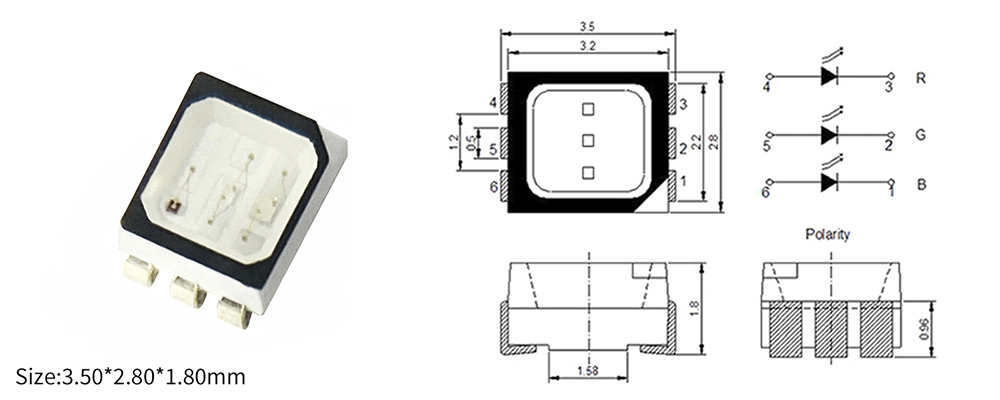

| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT28FRGB0-BGBBEKP01 | 红光 (Red) | 120° | 30mA | 1.8-2.4V @20mA | 620-630nm | 350-780mcd @20mA |
| 绿光 (Green) | 2.8-3.4V @20mA | 520-530nm | 1300-2900mcd @20mA | |||
| 蓝光 (Blue) | 2.8-3.4V @20mA | 460-475nm | 350-780mcd @20mA |

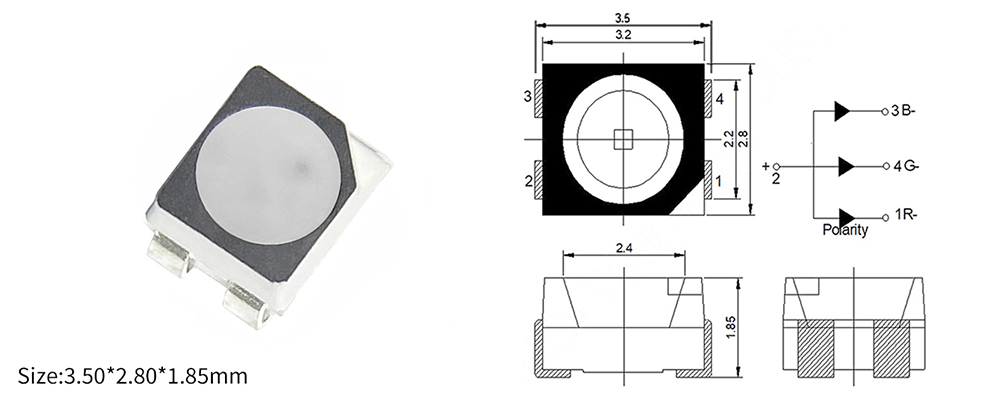

| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 发光角度 (Viewing Angle) | 正向电流 (Forward Current) | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJT28FHRGB0-BGBBEKP01 | 红光 (Red) | 120° | 30mA | 1.8-2.4V @20mA | 620-630nm | 350-780mcd @20mA |
| 绿光 (Green) | 2.8-3.4V @20mA | 520-535nm | 1300-2900mcd @20mA | |||
| 蓝光 (Blue) | 2.8-3.4V @20mA | 460-475nm | 350-780mcd @20mA |
