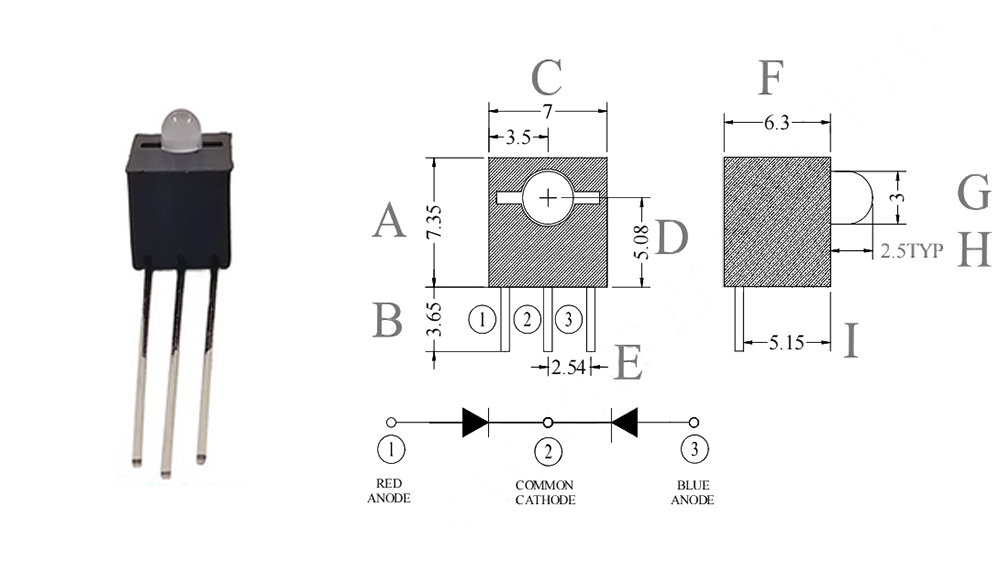

3mm 单灯H9套管
H9
数量
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ3B90W-H3R2-BC-H9 共阴 (COMMON CATHODE) | 红光 (Red) | 白色扩散 (White Diffused) | 100° | 20mA | 1.8-2.6V | 625-635nm | 30-210mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.6V | 565-575nm | 20-120mcd | ||||
| WEJ3B90W-R1H0-BC-H9 共阴 (COMMON CATHODE) | 红光 (Red) | 白色扩散 (White Diffused) | 120° | 20mA | 1.8-2.6V | 620-635nm | 10-45mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.6V | 565-575nm | 10-60mcd | ||||
| WEJ3B90W-R3B7-BC-H9 共阴 (COMMON CATHODE) | 红光 (Red) | 白色扩散 (White Diffused) | 110° | 20mA | 1.8-2.6V | 630-640nm | 70-210mcd |
| 蓝光 (Blue) | 2.8-3.6V | 465-475nm | 210-1300mcd | ||||
| WEJ3B90W-R4H3-BA-H9 共阳 (COMMON ANODE) | 红光 (Red) | 白色扩散 (White Diffused) | 120° | 20mA | 1.8-2.6V | 635-650nm | 20-70mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.6V | 565-575nm | 10-60mcd |
