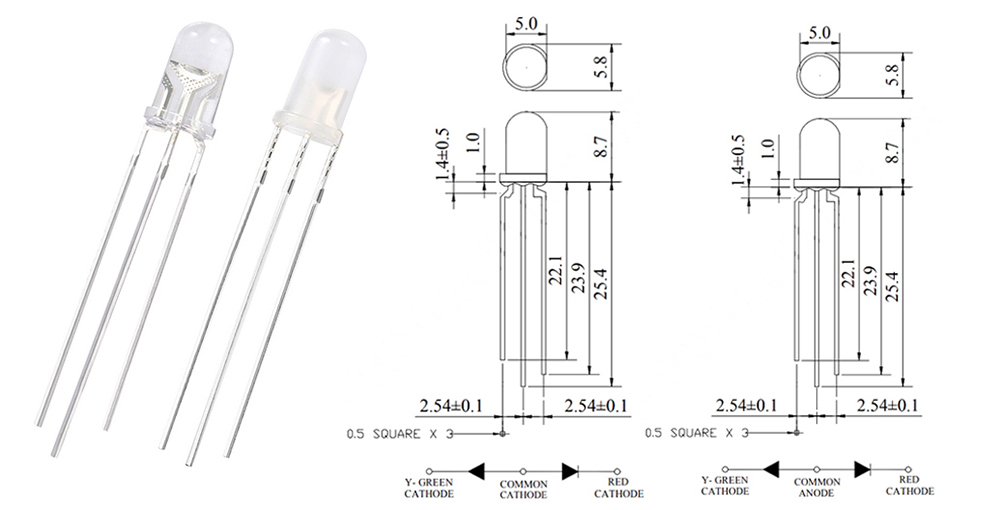

5mm双色系列
5mm bi-color
数量
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ5090C-RSBA-BA 共阳 (COMMON ANODE) | 红光 (Red) | 无色透明 (Water Clear) | 15° | 20mA | 1.8-2.4V | 620-635nm | 5000-11000mcd |
| 蓝光 (Blue) | 2.8-3.4V | 460-475nm | 1000-2200mcd | ||||
| WEJ5090C-RTG5-BC 共阴 (COMMON CATHODE) | 红光 (Red) | 无色透明 (Water Clear) | 40° | 20mA | 1.8-2.4V | 620-635nm | 780-2200mcd |
| 绿光 (Green) | 2.8-3.4V | 515-530nm | 2900-15000mcd | ||||
| WEJ5090C-J3BA-BA 共阳 (COMMON ANODE) | 红外 (IR) | 无色透明 (Water Clear) | 30° | 50mA | 1.2-1.6V | 940-950nm | 20-35mW/sr |
| 蓝光 (Blue) | 20mA | 2.8-3.4V | 460-475nm | 2200-3800mcd | |||
| WEJ5090W-R1H1-BA 共阳 (COMMON ANODE) | 红光 (Red) | 白色扩散 (White Diffused) | 40° | 20mA | 1.8-2.4V | 630-650nm | 5-30mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.4V | 565-575nm | 2-15mcd | ||||
| WEJ5090W-R2H0-BA-1 共阳 (COMMON ANODE) | 红光 (Red) | 白色扩散 (White Diffused) | 75° | 20mA | 1.8-2.4V | 630-645nm | 45-290mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.4V | 565-575nm | 10-90mcd | ||||
| WEJ5090W-H1R2-BC 共阴 (COMMON CATHODE) | 红光 (Red) | 白色扩散 (White Diffused) | 75° | 20mA | 1.8-2.4V | 620-630nm | 45-270mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.4V | 565-575nm | 10-70mcd | ||||
| WEJ5090W-R8H8-BC 共阴 (COMMON CATHODE) | 红光 (Red) | 白色扩散 (White Diffused) | 50° | 20mA | 1.8-2.4V | 619-629nm | 270-780mcd |
| 黄绿光 (Yellow-Green) | 1.8-2.4V | 565-575nm | 160-600mcd | ||||
| WEJ5090W-R1G0-BC 共阴 (COMMON CATHODE) | 红光 (Red) | 白色扩散 (White Diffused) | 130° | 20mA | 2.0-2.4V | 620-630nm | 70-380mcd |
| 绿光 (Green) | 2.8-3.4V | 515-530nm | 600-1700mcd | ||||
| WEJ5090W-G5B6-BC 共阴 (COMMON CATHODE) | 绿光 (Green) | 白色扩散 (White Diffused) | 140° | 20mA | 2.8-3.4V | 515-530nm | 600-3800mcd |
| 蓝光 (Blue) | 2.8-3.4V | 460-475nm | 210-1000mcd |
