3mm无边无帽沿圆头系列

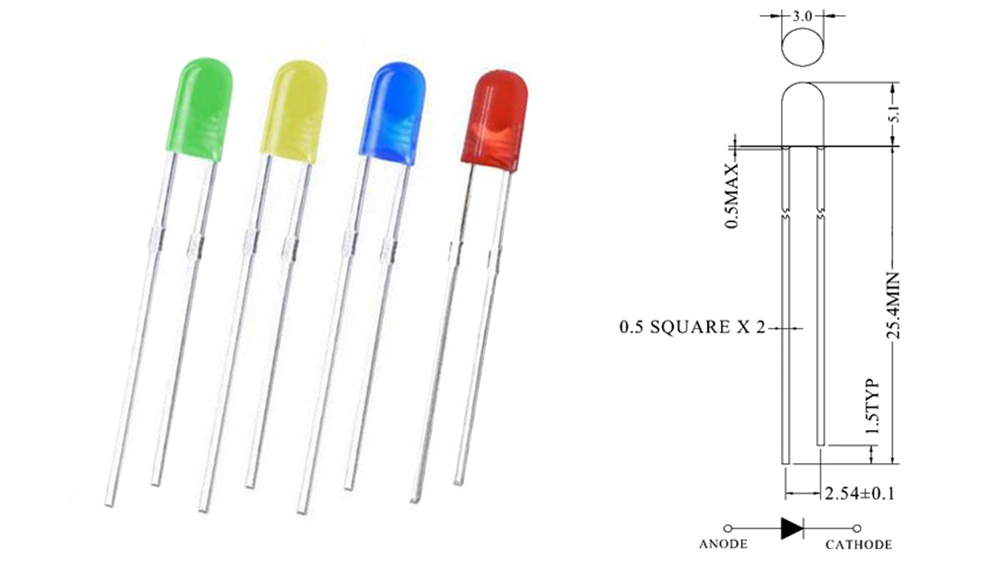

3mm round head led
数量
| 型号 (WEJ P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward Voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |
| WEJ3N4RC-851 | 红光 (Red) | 无色透明 (Water Clear) | 40° | 20mA | 1.8-2.4V | 620-630nm | 270-780mcd |
| WEJ3N4HC-752 | 黄绿光 (Yellow-Green) | 无色透明 (Water Clear) | 35° | 20mA | 1.8-2.4V | 565-575mcd | 160-780mcd |
| WEJ3N4YW-AT3 | 黄光 (Yellow) | 白色扩散 (White Diffused) | 180° | 20mA | 1.8-2.4V | 585-595nm | 160-600mcd |
| WEJ3N4RD-851-1 | 红光 (Red) | 红色扩散 (Red Diffused) | 90° | 20mA | 1.8-2.4V | 620-630nm | 70-350mcd |
| WEJ3N4HD-752-2 | 黄绿光 (Yellow-Green) | 绿色扩散 (Green Diffused) | 40° | 20mA | 1.8-2.4V | 565-575mcd | 70-160mcd |
| WEJ3N4GD-9Z4 | 绿光 (Green) | 绿色扩散 (Green Diffused) | 60° | 20mA | 2.8-3.4V | 515-525nm | 1300-3800mcd |
| WEJ3N4YD-872 | 黄光 (Yellow) | 黄色扩散 (Yellow Diffused) | 90° | 20mA | 1.8-2.4V | 585-595nm | 70-350mcd |
