SMD RGB LED for Display Screen

SMD RGB LED for Display Screen

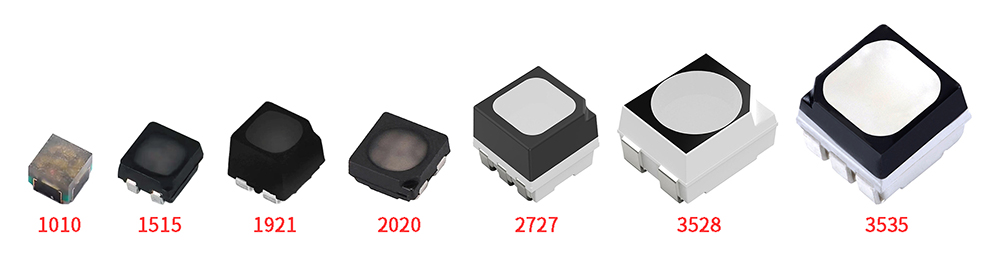

1010/1515/1921/2020/2121/2727/3528/3535 package
•Gold wire bonding for superior long-term stability
•High brightness with ultra-low power consumption
•Large-size LED chip with PV protective coating
•Precise RGB primary color binning & matching
•Enables glasses-free 3D display with wide viewing angle
Quantity
Contact Now
add to cart
SMD RGB LED for Display Screen

Get Free Samples Now   Just Click Here Submit Your Email

SMD RGB LED for Indoor Display Screen

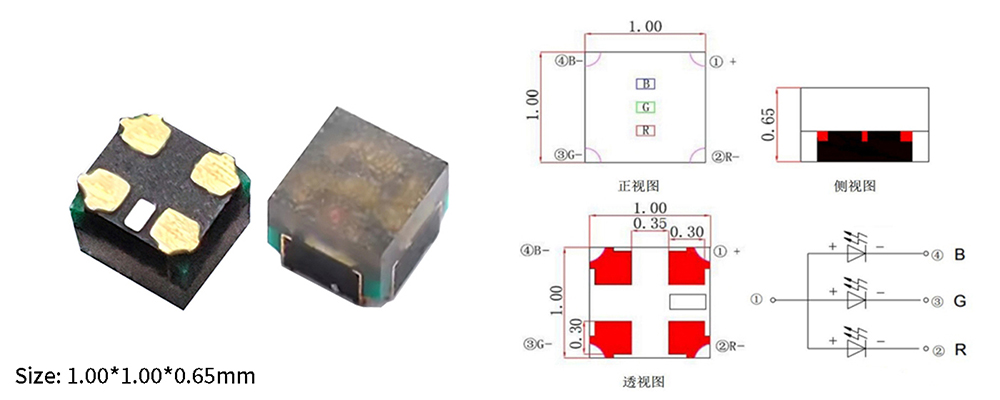

1010 RGB LED

SMD RGB LED for Display Screen

WEJ P/N
Emitted Color
Viewing Angle
Forward Current
Forward Voltage
Dominant Wavelength
Luminous Intensity
WEJT10FRGB0-F93
Red
120°
10mA
615-625nm
10-30mcd @2mA
Green
530-540nm
60-80mcd @2mA
Blue
460-470nm
5-15mcd @2mA

Get Sample & Quotation    Just Click Here

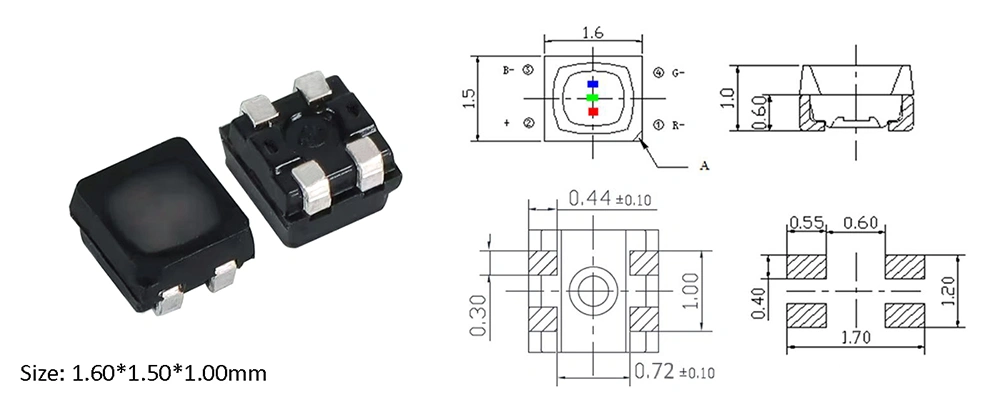

1515 RGB LED

SMD RGB LED for Display Screen
WEJ P/NEmitted ColorViewing AngleForward CurrentForward VoltageDominant WavelengthLuminous Intensity
WEJT1615FRGB0-F95Red110°25mA1.6-2.4V @8mA615-630nm25-100mcd @8mA
Green2.4-3.2V @5mA515-540nm80-200mcd @5mA
Blue2.4-3.2V @3mA460-480nm9-40mcd @3mA

Get Sample & Quotation    Just Click Here

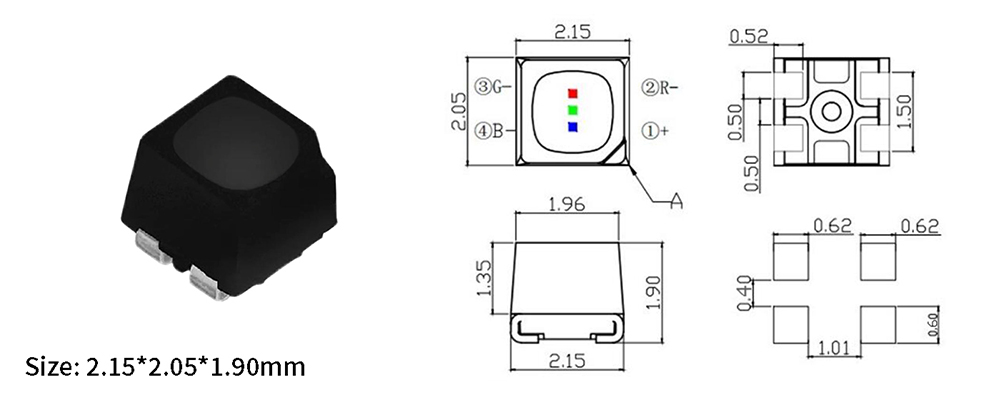

1921 RGB LED

SMD RGB LED for Display Screen
WEJ P/NEmitted ColorViewing AngleForward CurrentForward VoltageDominant WavelengthLuminous Intensity
WEJT21FRGB0-S95XSRed110°25mA1.8-2.4V @15mA615-630nm350-750mcd @15mA
Green2.4-3.4V @8mA515-535nm520-1150mcd @8mA
Blue2.4-3.4V @5mA465-480nm70-160mcd @5mA

Get Sample & Quotation    Just Click Here

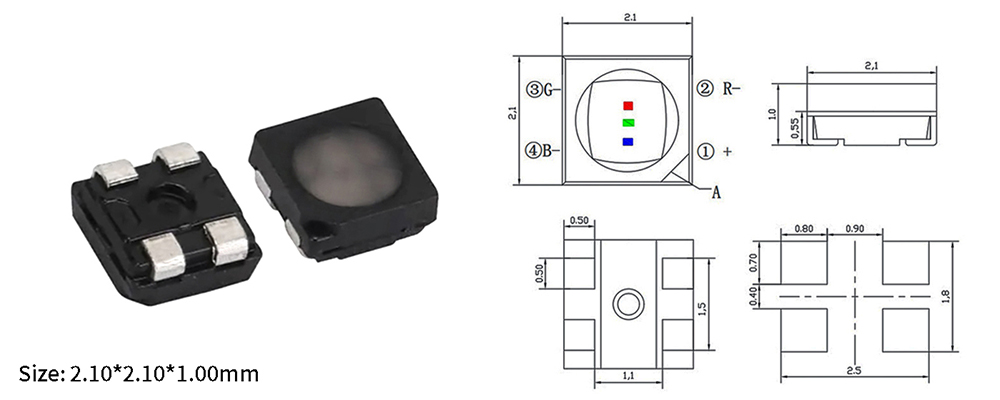

2020 RGB LED

SMD RGB LED for Display Screen
WEJ P/NEmitted ColorViewing AngleForward CurrentForward VoltageDominant WavelengthLuminous Intensity
WEJT20FRGB0-S96Red120°20mA1.6-2.4V @8mA615-630nm30-110mcd @8mA
Green2.4-3.2V @5mA515-540nm90-270mcd@5mA
Blue2.4-3.2V @3mA465-480nm12-40mcd@3mA

Get Sample & Quotation    Just Click Here

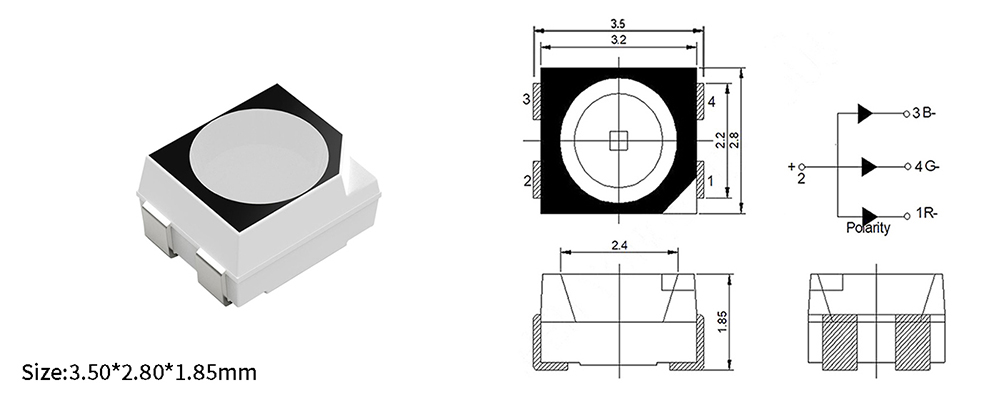

3528 RGB LED

SMD RGB LED for Display Screen
WEJ P/NEmitted ColorViewing AngleForward CurrentForward VoltageDominant WavelengthLuminous Intensity
WEJT28HRGB0-BE7HFBP01Red120°20mA1.8-2.4V @20mA617-630nm460-700mcd @20mA
Green2.6-3.4V @20mA520-535nm1000-1600mcd @20mA
Blue2.6-3.4V @20mA465-470nm350-520mcd @20mA

Get Sample & Quotation    Just Click Here

SMD RGB LED for Outdoor Display Screen

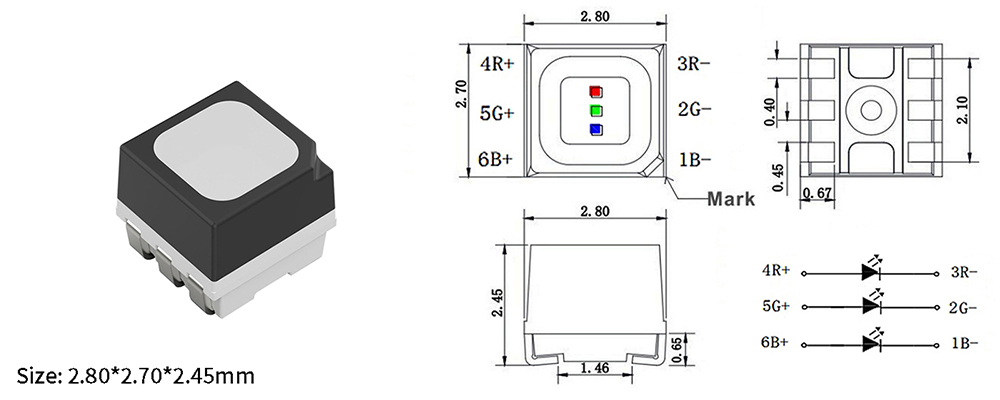

2727 RGB LED

SMD RGB LED for Display Screen
WEJ P/NEmitted ColorViewing AngleForward CurrentForward VoltageDominant WavelengthLuminous Intensity
WEJT27FRGB0-AGBBEKP01Red120°30mA1.8-2.5V @15mA615-630nm310-1150mcd @15mA
Green2.5-3.4V @8mA515-535nm500-2220mcd @8mA
Blue2.5-3.4V @5mA465-480nm70-370mcd @5mA)

Get Sample & Quotation    Just Click Here

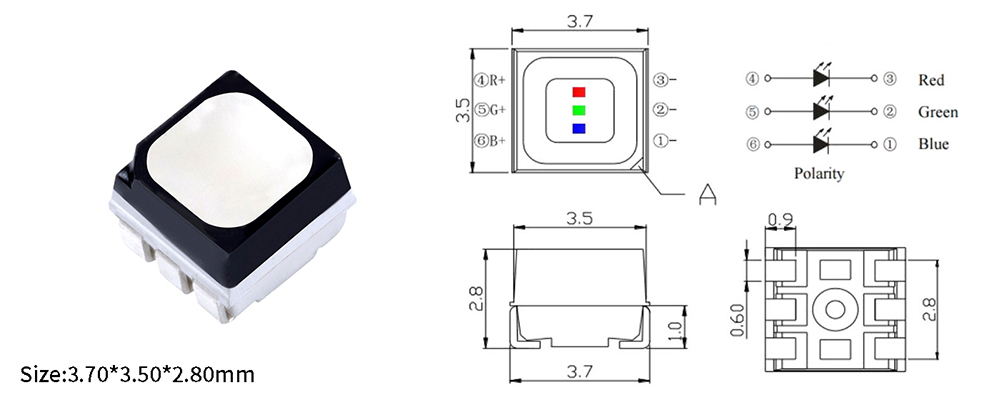

3535 RGB LED

SMD RGB LED for Display Screen
WEJ P/NEmitted ColorViewing AngleForward CurrentForward VoltageDominant WavelengthLuminous Intensity
WEJT35HRGBV-WDGXP01Red120°30mA1.7-2.6V @20mA615-630nm733-1650mcd @20mA
Green2.4-3.4V @20mA520-540nm1600-3600mcd @20mA
Blue2.4-3.4V @20mA460-480nm367-825mcd @20mA
