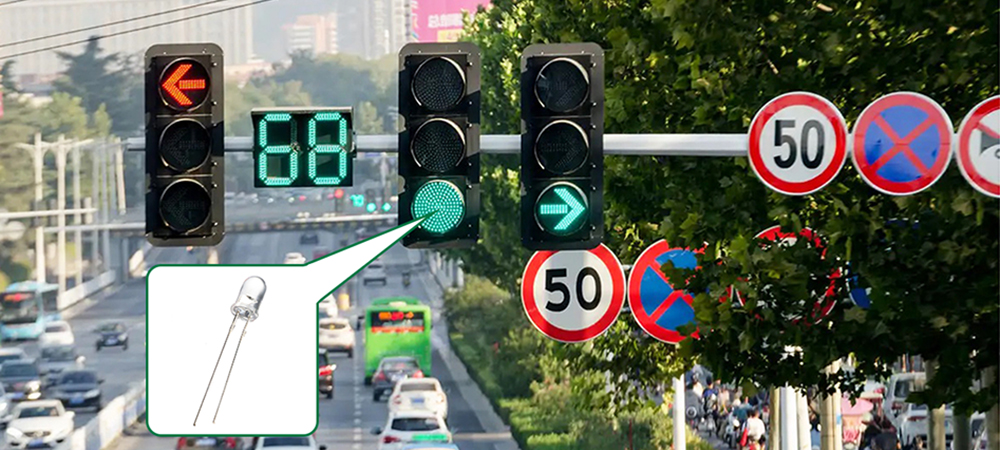

High-Performance 5mm LEDs in Urban Traffic Control Systems

In the world of smart city infrastructure, Traffic Signal Lights are the silent guardians of public safety. Because these systems are active 24/7 in every imaginable weather condition, the "heart" of the signal—the LED—must meet an incredibly high bar for performance and longevity.

This case study highlights how our specialized 5mm Through-hole (DIP) LEDs help global manufacturers meet international mandates while ensuring maximum road safety.

1. Navigating Global Industry Standards

To enter the global supply chain, traffic signals must adhere to strict optical and environmental regulations. Our partnership projects focus on three major pillars:

EN 12368 (European Standard): Focuses on luminous intensity classes, beam distribution, and the prevention of the "sun phantom" effect (ensuring sunlight doesn't make an "off" signal appear "on").

ITE VTCSH (North American Standard): Specifies rigorous "Maintained Intensity" levels, ensuring the light doesn't dim significantly over years of outdoor exposure.

CIE S 004/E: The global benchmark for Chromaticity, ensuring that "Traffic Green" is distinctly different from other street lighting for absolute driver clarity.

2. The Technical Edge: Why 5mm LEDs?

While surface-mount (SMD) technology is popular in consumer electronics, the 5mm DIP LED remains the gold standard for traffic modules due to two critical factors:

Natural Directivity: The built-in epoxy lens provides precise viewing angles (15° to 30°) without the need for expensive secondary optics.

Thermal Management: The through-hole leads act as effective heat sinks, pulling heat away from the chip. This is critical for preventing color shift and light degradation in high-temperature climates.

3. Our Solution: The Professional’s Choice for Traffic Modules

Working alongside leading Traffic Signal OEMs, we have refined our 5mm LED series to solve the most common technical "pain points" in the field.

Core Product Advantages:

Superior Luminous Intensity: Engineered with high-efficiency AlGaInP and InGaN chips, our LEDs offer industry-leading brightness. This ensures maximum visibility even under direct, high-noon sunlight or during heavy rain and fog.

Uniform Light Pattern & Precision Optics: Our proprietary Epoxy Lens design produces a perfect circular beam with consistent light distribution. We’ve eliminated common "yellow ring" and "hot spot" issues, providing a smooth, uniform backlight for signal faces.

Rugged Outdoor Reliability: Traffic lights live in a harsh world. Our LEDs featuremoisture-resistant packaging and exceptional thermal stability. Tested to perform from -40°C to +85°C, they ensure a long, maintenance-free lifespan that slashes municipal repair costs.

Global Compliance Ready: We offer precise wavelength binning to match any regional specification:

625nm Red: High-purity stop signals.

590nm Amber/Yellow: High-contrast caution signals.

505nm Bluish-Green: The global standard for "Go" signals.

4. Collaboration & Inquiries

We don't just sell components; we provide the technical backbone for safer intersections. Whether you are designing Pedestrian Signals, Arrow Indicators, or Countdown Timers, our team offers the optical data and reliability reports you need to pass certification.

Are you a Traffic Signal Manufacturer looking to upgrade your module's performance? Contact our engineering team today for samples and full technical specifications.
