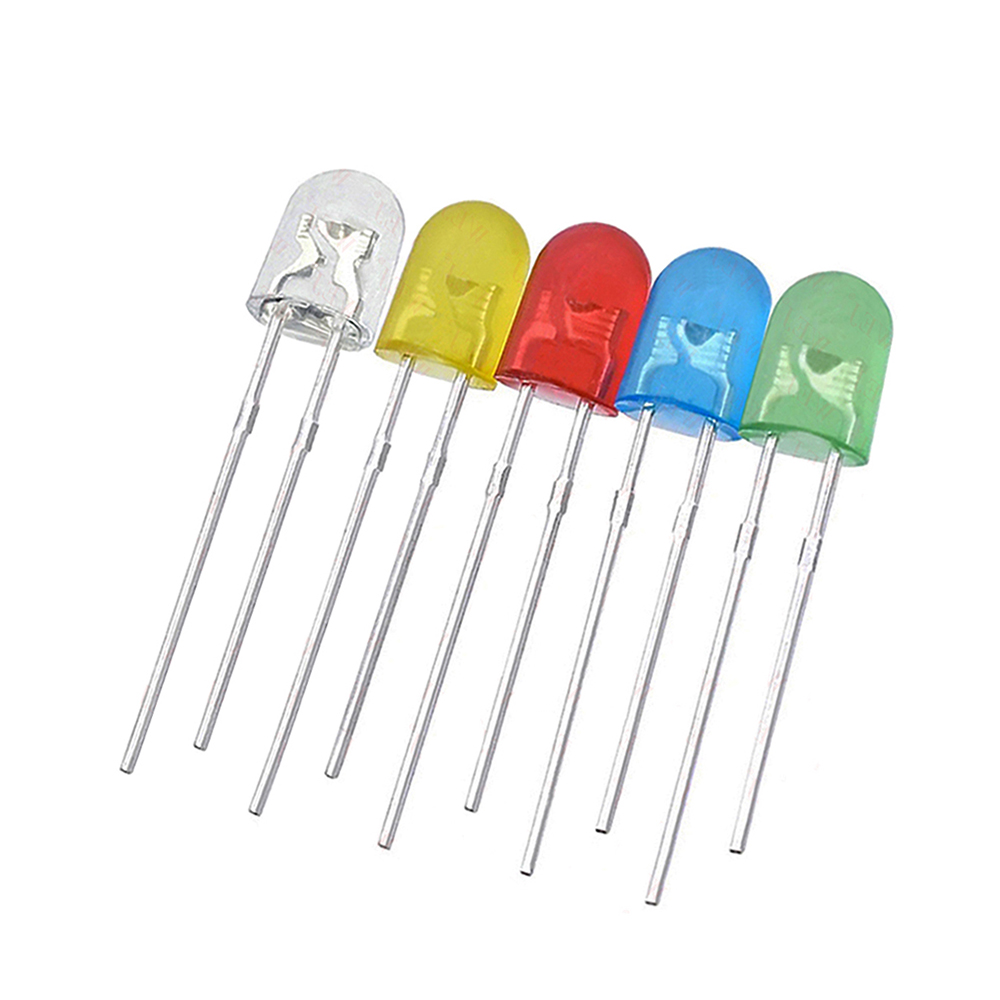

High brightness 5mm led diode
High brightness 5mm led

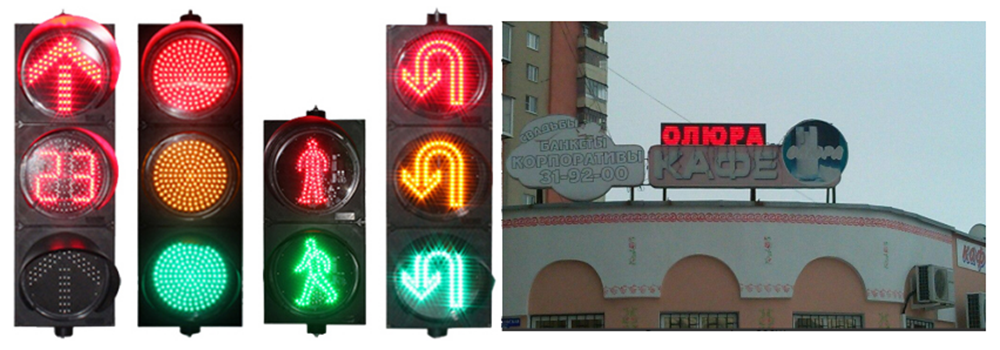

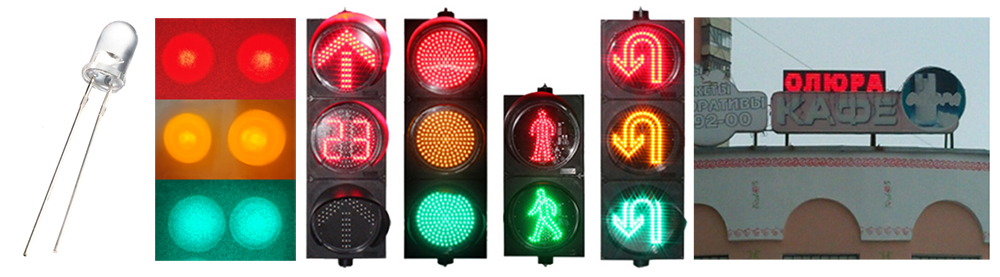

High brightness 5mm led diode for Traffic Signals & Signage Lights
Emitting color : Red, Amber, Yellow, Green, Blue, White
Resin Color : Water Clear
Viewing Angle : 10/12/15/20/30/45Degree
Emitting color : Red, Amber, Yellow, Green, Blue, White
Resin Color : Water Clear
Viewing Angle : 10/12/15/20/30/45Degree
Quantity
🏭High Brightness 5mm LED Diode for Traffic & Signage Lights
20+ years LED packaging experience, two factories, 50M units/month capacity
✨Engineered for high-reliability applications: traffic signals and LED channel letters / signage
•Superior Luminous Intensity: Industry-leading brightness ensures clear visibility even under direct sunlight or adverse weather.

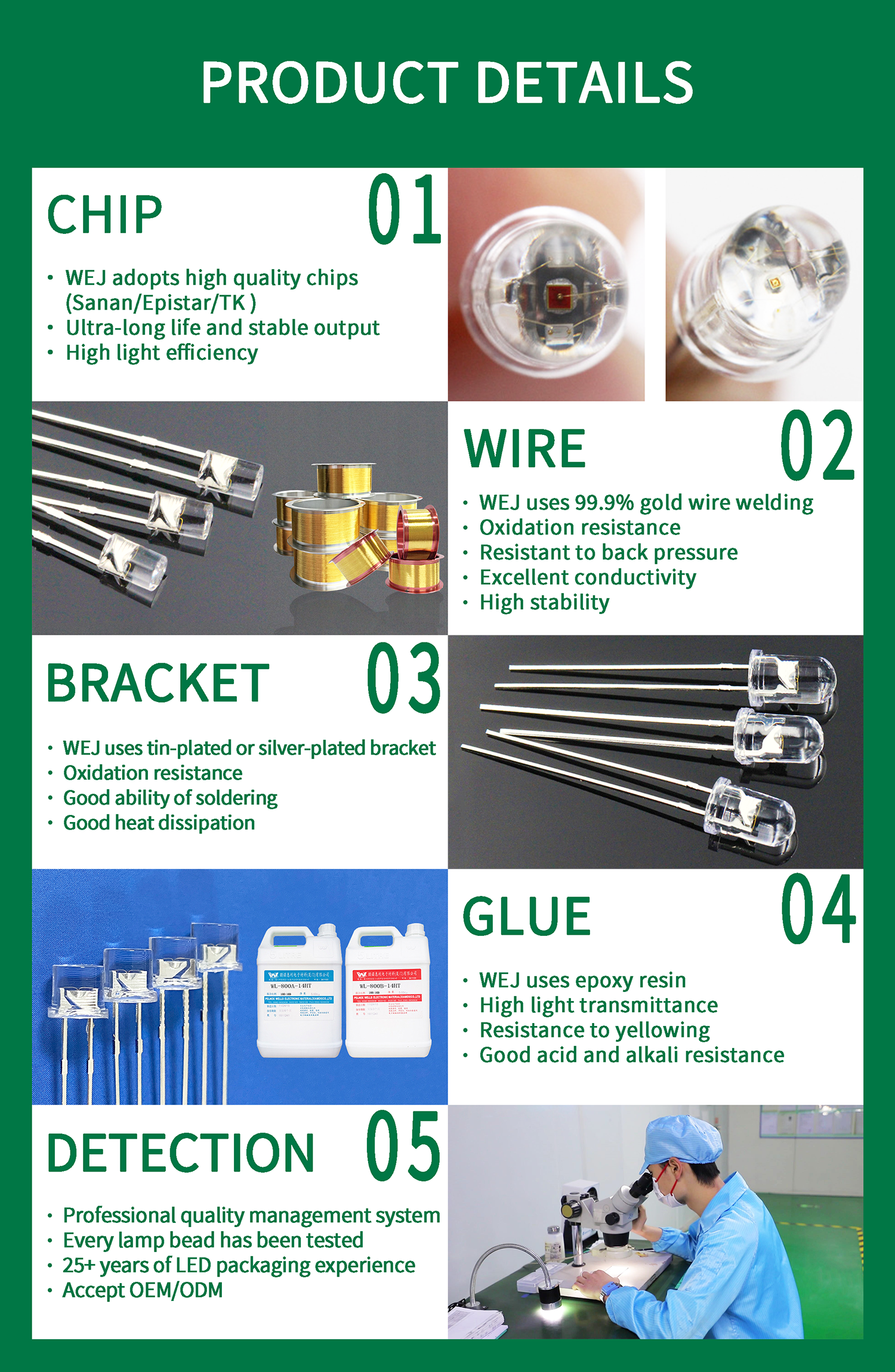

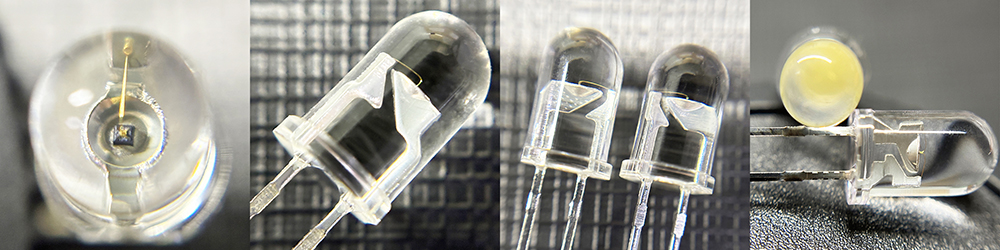

•Uniform Light Spot: Precision epoxy lens design delivers a perfectly round, consistent light spot with no yellow ring or hot spot, ideal for even backlighting of sign faces.
•Robust Outdoor Performance: Moisture-resistant packaging and excellent thermal stability for long-life, maintenance-free operation in traffic control systems.
•Standard Compliance Ready: Custom wavelengths available to meet global traffic signal specifications (e.g., 625nm Red, 590nm Yellow, 505nm Green).
•Uniform Light Spot: Precision epoxy lens design delivers a perfectly round, consistent light spot with no yellow ring or hot spot, ideal for even backlighting of sign faces.
•Robust Outdoor Performance: Moisture-resistant packaging and excellent thermal stability for long-life, maintenance-free operation in traffic control systems.
•Standard Compliance Ready: Custom wavelengths available to meet global traffic signal specifications (e.g., 625nm Red, 590nm Yellow, 505nm Green).

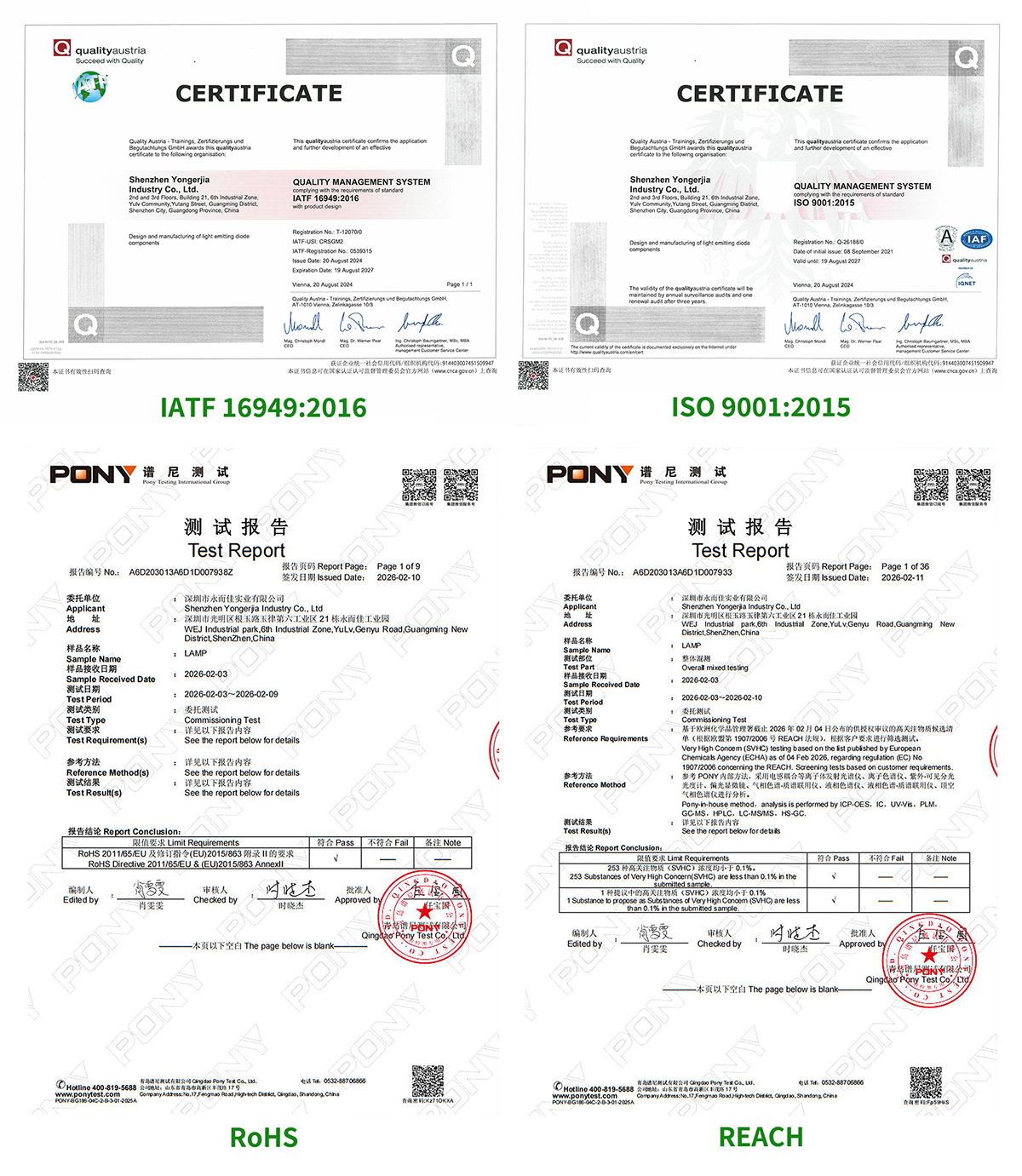

✅Global Certifications
ISO 9001, IATF 16949, RoHS, REACH
🚚 Fast Delivery
Samples: 1–3 days · Bulk orders: 7–15 days
💡Low MOQ & Free Samples
Free samples available · Small Trial Production orders welcome
🔧Customization Support
LED color, viewing angle, brightness, and more
🌍Global Presence
Exporting to USA, Germany, Poland, South Korea & 30+ countries
ISO 9001, IATF 16949, RoHS, REACH
🚚 Fast Delivery
Samples: 1–3 days · Bulk orders: 7–15 days
💡Low MOQ & Free Samples
Free samples available · Small Trial Production orders welcome
🔧Customization Support
LED color, viewing angle, brightness, and more
🌍Global Presence
Exporting to USA, Germany, Poland, South Korea & 30+ countries
Get Samples & Price Now Just Click Here Submit Your Email
High brightness 5mm LED Diodes
WEJ P/N (Specifications) | Emitted Color | Resin Color | Viewing Angle | IF(mA) Test | Forward Voltage | Dominant Wavelength | Luminous Intensity |
|---|---|---|---|---|---|---|---|
| WEJ503BC-8K4 | Blue | Water Clear | 20° | 20mA | 2.8-3.4V | 460-475nm | 6500-10000mcd |
| WEJ504BC-EZB6-45 | Blue | Water Clear | 45° | 20mA | 2.9-3.6V | 465-475nm | 3000-4000mcd |
| WEJ504GC-8K4 | Green | Water Clear | 15° | 20mA | 2.8-3.4V | 515-530nm | 16000-28000mcd |
| WEJ503CC-CZG1-20 | Green | Water Clear | 20° | 20mA | 2.8-3.4V | 500-505nm | 14000-36000mcd |
| WEJ504GC-D1G5-45 | Green | Water Clear | 45° | 20mA | 3.0-3.6V | 515-530nm | 8500-10000mcd |
| WEJ504GC-D1G5-65 | Green | Water Clear | 65° | 20mA | 3.1-3.4V | 515-530nm | 5000-7000mcd |
| WEJ504RC-9T1-F | Red | Water Clear | 15° | 20mA | 1.8-2.4V | 620-630nm | 6000-12000mcd |
| WEJ554RC-E4R6-F-30 | Red | Water Clear | 30° | 20mA | 1.8-2.4V | 660nm | 1700-5000mcd |
| WEJ504RC-CZR1-45 | Red | Water Clear | 45° | 20mA | 2.0-2.4V | 620-630nm | 4000-4500mcd |
| WEJ504YC-AT1-F | Yellow | Water Clear | 15° | 20mA | 1.8-2.4V | 585-595nm | 8500-18000mcd |
| WEJ504YC-AT3-F-45 | Yellow | Water Clear | 45° | 20mA | 2.0-2.4V | 585-595nm | 3000-4200mcd |
| WEJ50BWC-H7B4-Z2-10 | White | Water Clear | 10° | 20mA | 2.8-3.4V | 4600-6000K | 23000-50000mcd |
| WEJ51BWC-C22-W | White | Water Clear | 15° | 20mA | 2.8-3.4V | 6000-9900K | 18000-30000mcd |
| WEJ50BWC-H7B4-B3-45 | White | Water Clear | 45° | 20mA | 2.9-3.6V | 7200-9900K | 6500-10000mcd |
| WEJ50CWC-H7B4-B6-ZD | White+ZD | Water Clear | 12° | 20mA | 2.8-3.4V | 9900-20000K | 20000-40000mcd |
Get A Latest Product Catalogue And The Price List Just Click Here
